B Series Push-Pull Self-Locking Connectors
Push-pull self-locking circular connectors with 2–32 pins, IP50 protection, over 5,000 mating cycles and a -55°C to +250°C working range.
Product

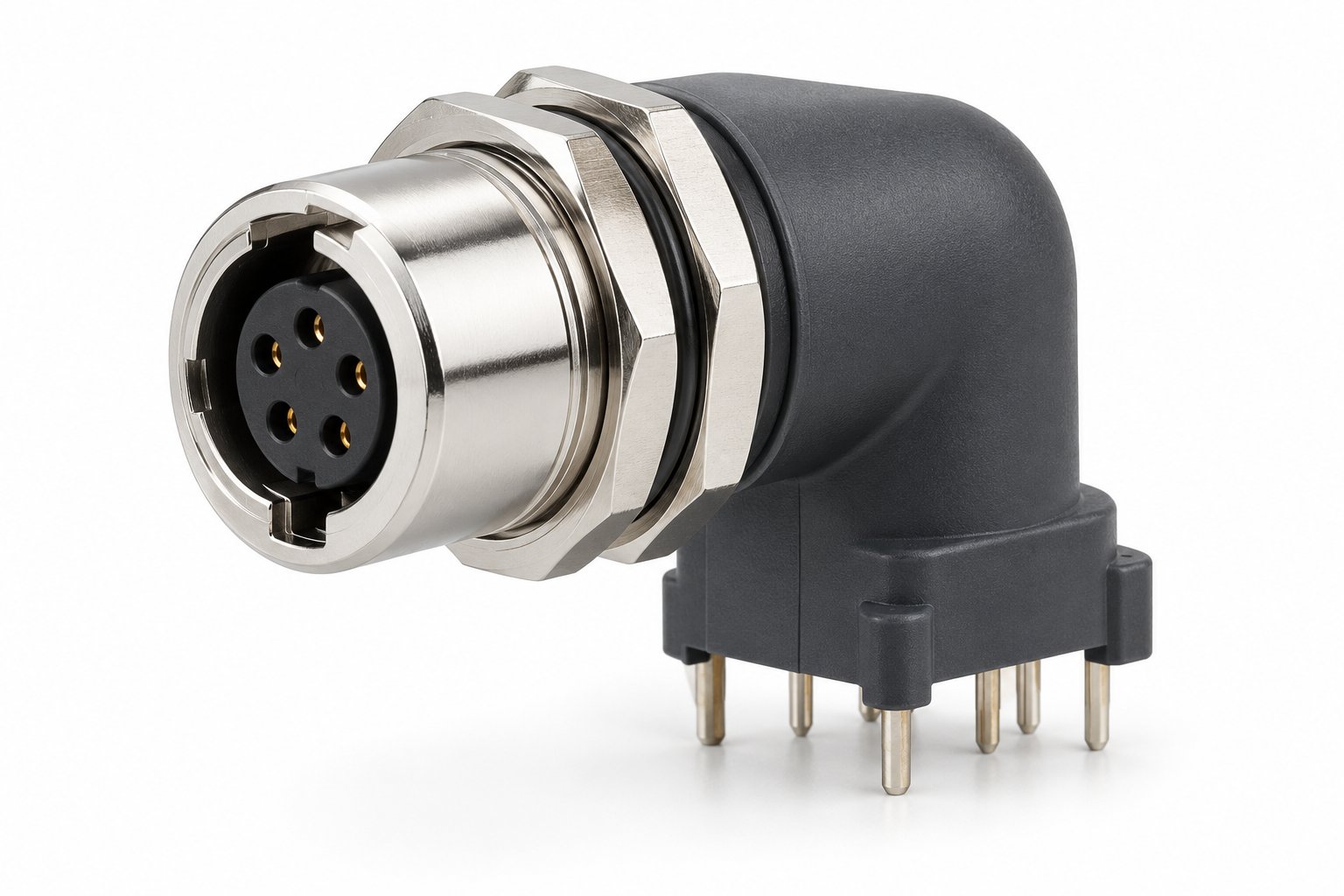

B Series ZXG Double-Nut 90° Elbow PCB Socket
Double-nut 90° elbow short straight-pin PCB socket of the B Series, combining front-panel fixing with board-level mounting.
View specification

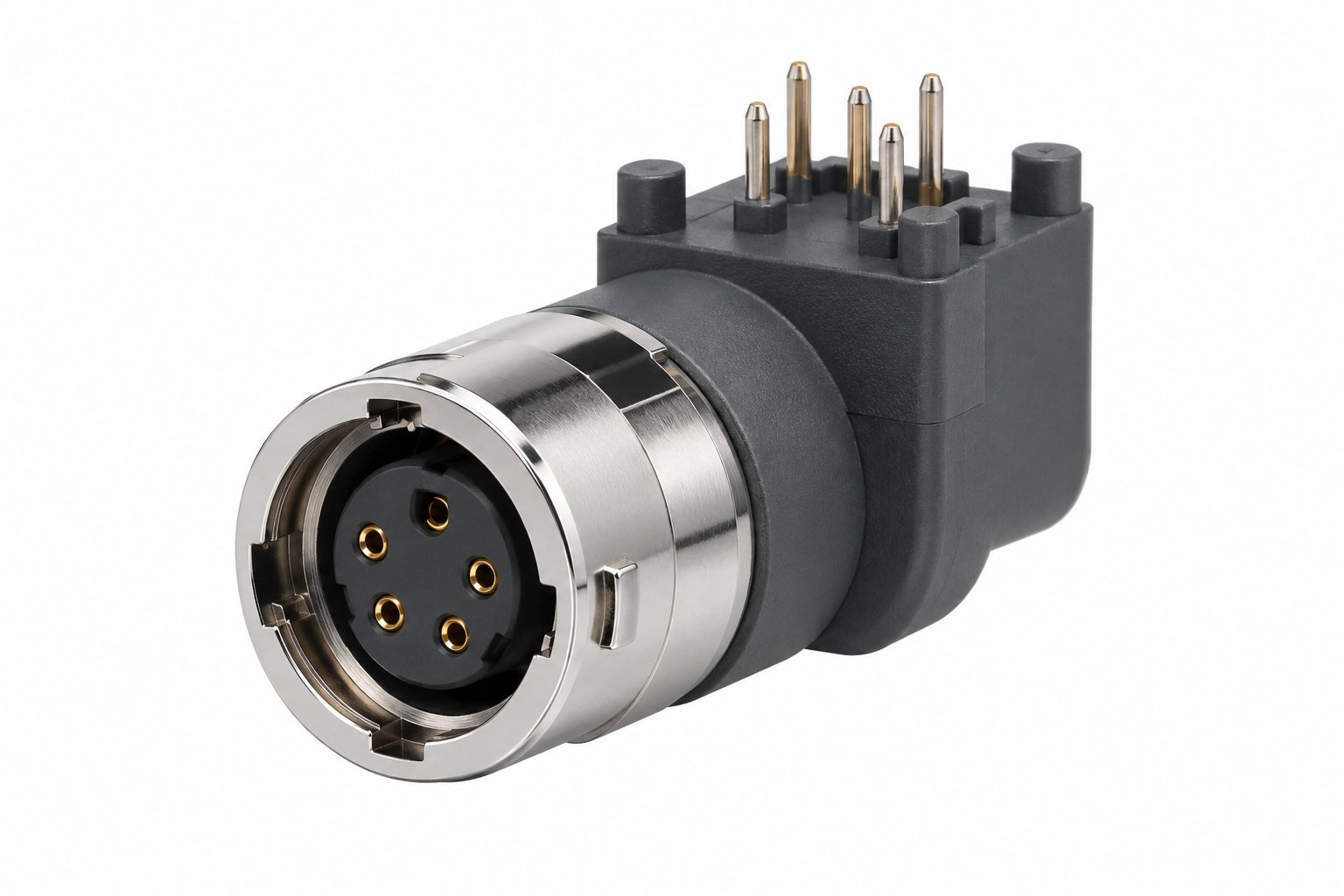

B Series ZPG 90° Elbow PCB Socket
90° elbow short straight-pin PCB socket of the B Series, PPS insulator, brass chrome shell face, 00B–1B shell sizes.
View specification
B Series ZCG Long Elbow-Pin PCB Socket
Double-nut B Series socket with long right-angle bent PCB pins for board-mounted installations, 0B–3B shell sizes.
View specification

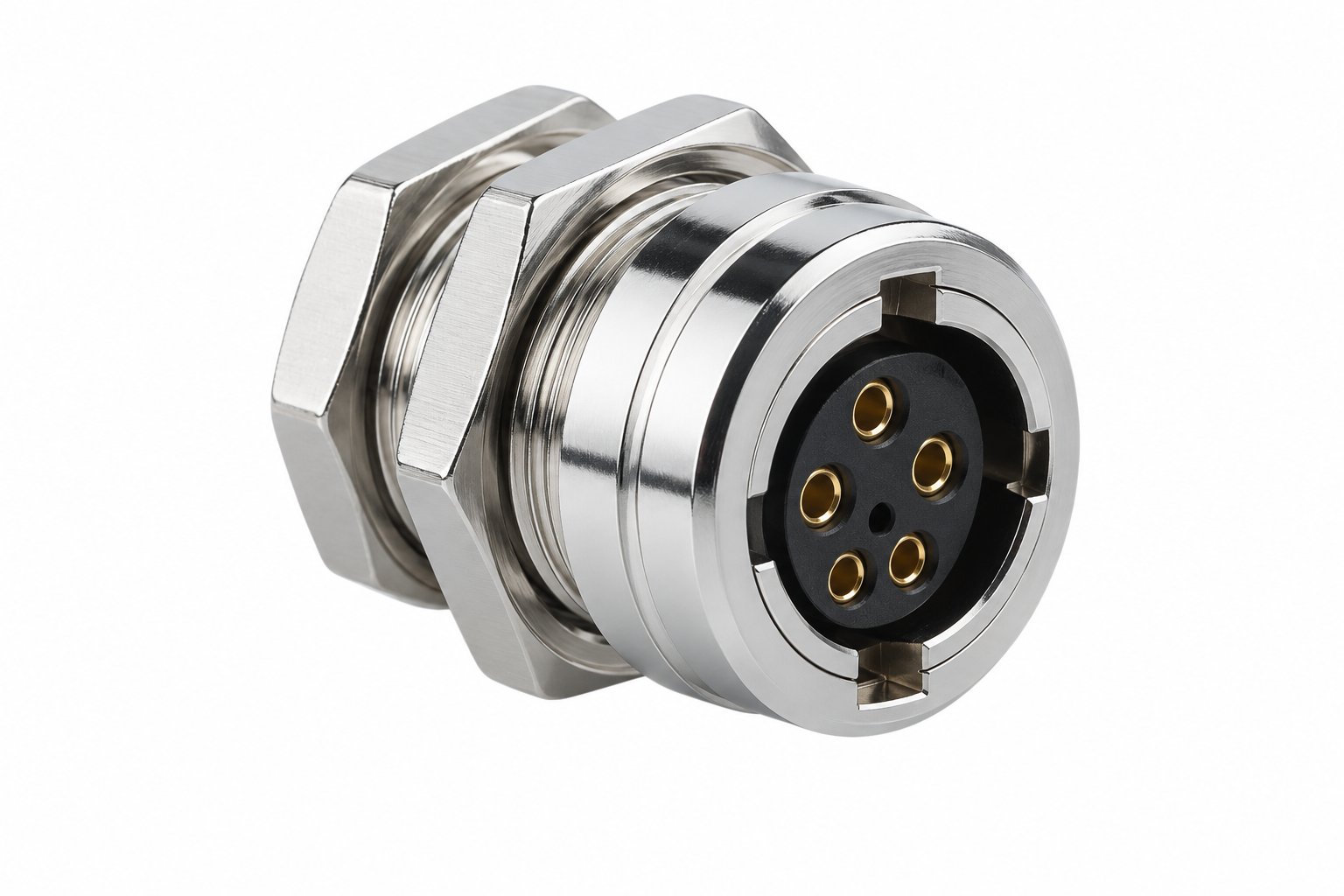

B Series ZCG Double-Nut Fixed Socket
Double-nut fixed socket of the B Series in solder-wire and PCB layouts, plus a long elbow-pin PCB variant, 0B–3B shell sizes.
View specification
B Series ZEG Outer Fixed Socket
Outer fixed socket of the B Series with external mounting thread, solder-wire and PCB layouts, 00B–4B shell sizes.
View specification

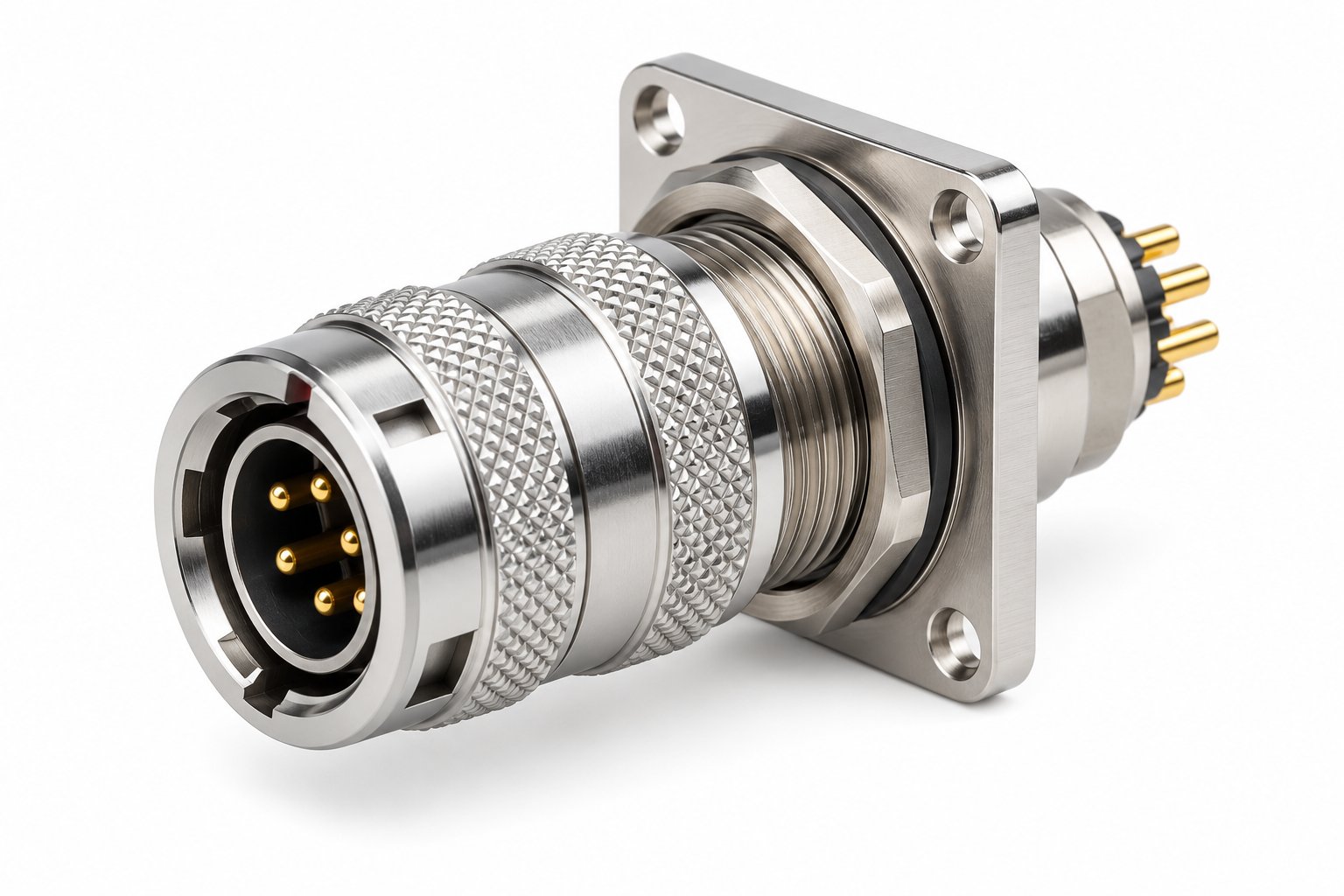

B Series TAG Fixed Push-Pull Plug
Panel-fixed plug of the B Series with threaded front mounting, 00B–4B shell sizes, 2–32 pins, IP50 mated.
View specification

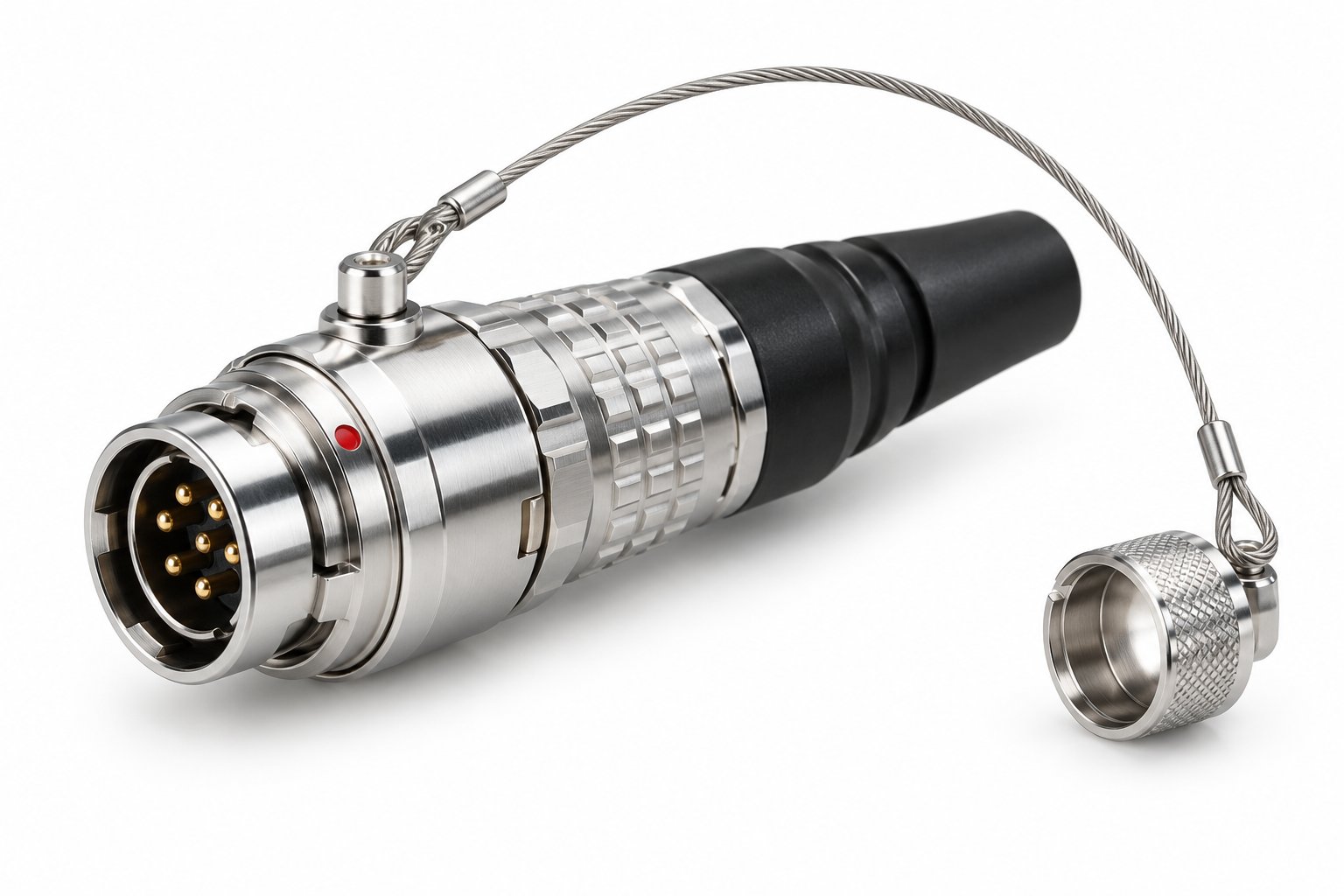

B Series TEG Front-Sealed Plug with Lanyard
Front-sealed B Series plug with anti-loss lanyard, keeping the dust cap attached to the connector, 0B–3B shell sizes.
View specification

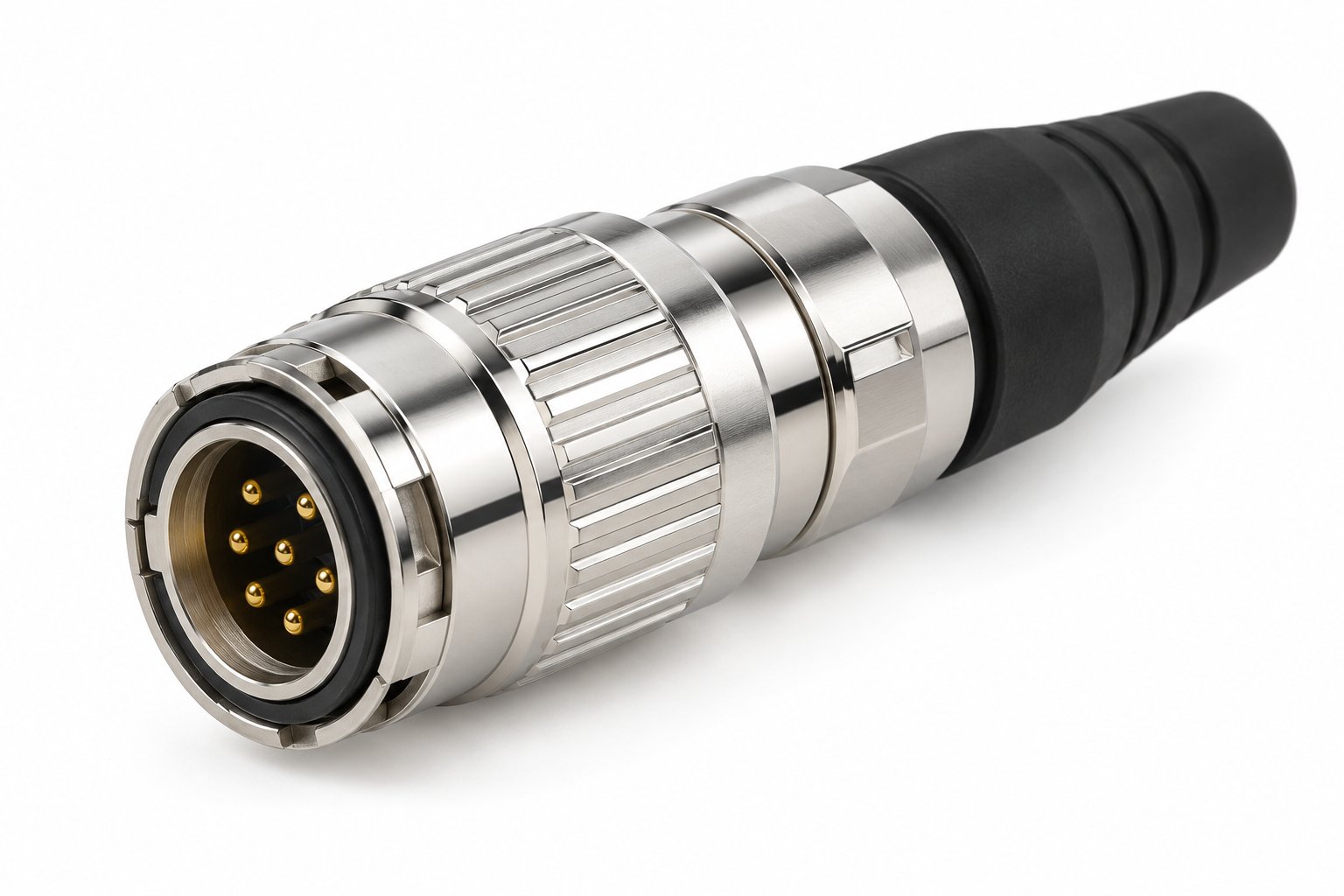

B Series TEG Front-Sealed Push-Pull Plug
Front-sealed straight plug of the B Series with an O-ring at the mating face, sleeve tail, 0B–3B shell sizes, IP50 mated.
View specification
B Series THG 90° Elbow Push-Pull Plug
90° elbow plug of the B Series, 2–32 pins, IP50, over 5,000 mating cycles, for installations with limited straight cable run.
View specificationB Series Knowledge
Technical Knowledge from the Product Catalogue
The B Series is the standard push-pull self-locking circular connector range: 2 to 32 contacts, solder, crimp or PCB termination, and over 5,000 mating cycles in a fully shielded metal shell.
Key Features
- Contact count from 2 to 32 pins
- Straight and 90° elbow cable exits
- High-density insert layout saves panel space
- Push-pull self-locking: quick mating, secure latching
- Full-metal one-piece shielding for excellent EMI resistance
- Solder, crimp and PCB termination supported
- Positioning-pin anti-mismatch structure, G-type standard keying
- Multiple keying options prevent mismating of same-size connectors
Technical Specifications
- Protection
- IP50 (mated)
- Mating cycles
- > 5,000
- Vibration
- 10–2000 Hz, 15 G
- Shock
- 100 G, 6 ms
- Salt spray
- > 144 h
- Working temperature
- -55 °C to +250 °C
- Damp heat
- 60 °C, 95% RH (no condensation)
- Shielding
- > 75 dB @ 10 MHz; > 40 dB @ 1 GHz
How the Product Code Works
Each B Series code combines the connector type, positioning pin, shell size, contact count, shell plating, insert material, contact style, cable clamp and accessories. Shell sizes run 00B / 0B / 1B / 2B / 3B / 4B, and the contact count is the last two digits of the insert code — for example 306 means 6 contacts.
Coding Examples
TGG.1B.306.CLAD62Straight plug, G positioning, 1B shell, 6 contacts, chrome-plated brass shell, PPS insert, solder male contacts, D-type cable clamp for 6.2 mm cable
DHG.1B.306.CLLD62ZFloating socket with the same electrical layout, plus a protective boot tail (Z)
ZGG.1B.306.CLLPanel-fixed socket, nut mounted, solder female contacts
