HR Series Machine Vision Connectors
HR10/HR25 machine vision connectors for industrial cameras, automation, robotics and measurement instruments.
Product
HR25 Machine Vision Fixed Socket
Machine vision panel fixed socket of the HR25 shell, 8 pins, push-pull locking, solder-wire and PCB layouts.
View specification
HR25 Machine Vision Straight Plug
Machine vision straight plug of the HR25 shell, 8 pins, push-pull locking, for higher-power camera and sensor feeds.
View specification
HR10 Machine Vision Threaded Fixed Socket
Machine vision panel fixed socket with threaded locking, 6/12/20 pins, solder-wire and PCB layouts, HR10 shells.
View specification
HR10 Machine Vision Threaded Straight Plug
Machine vision straight plug with threaded locking collar, 6/12/20 pins across HR10 shells, for vibration-prone mounts.
View specification
HR10 Machine Vision 90° Elbow Plug
Machine vision 90° elbow plug, 10-2 shell, 10/12 pins, push-pull locking, five-key polarization for industrial cameras.
View specification

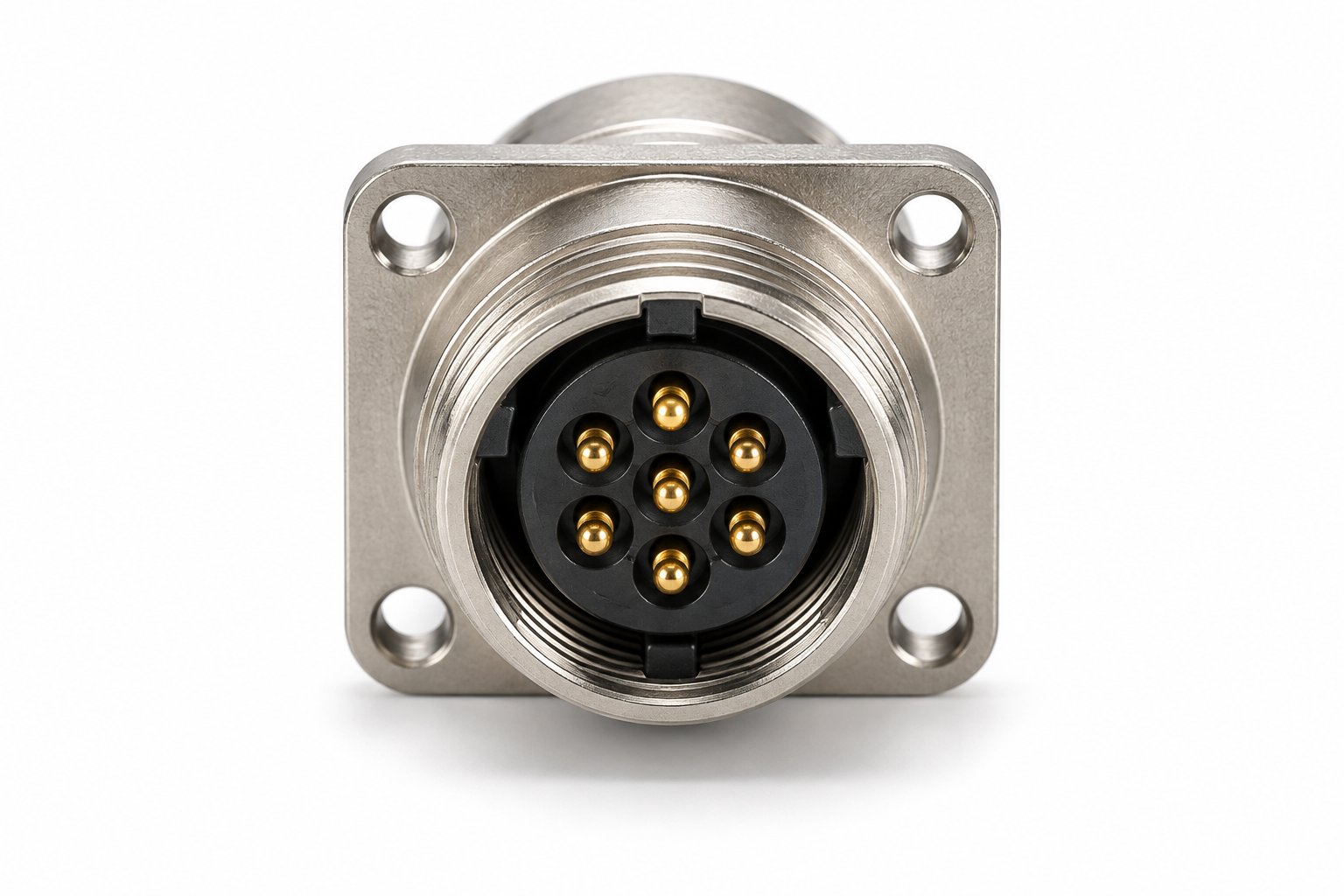

HR10 Machine Vision Floating Socket
Machine vision floating or fixed socket with 4–12 pins for the camera side of HR10 connections.
View specification

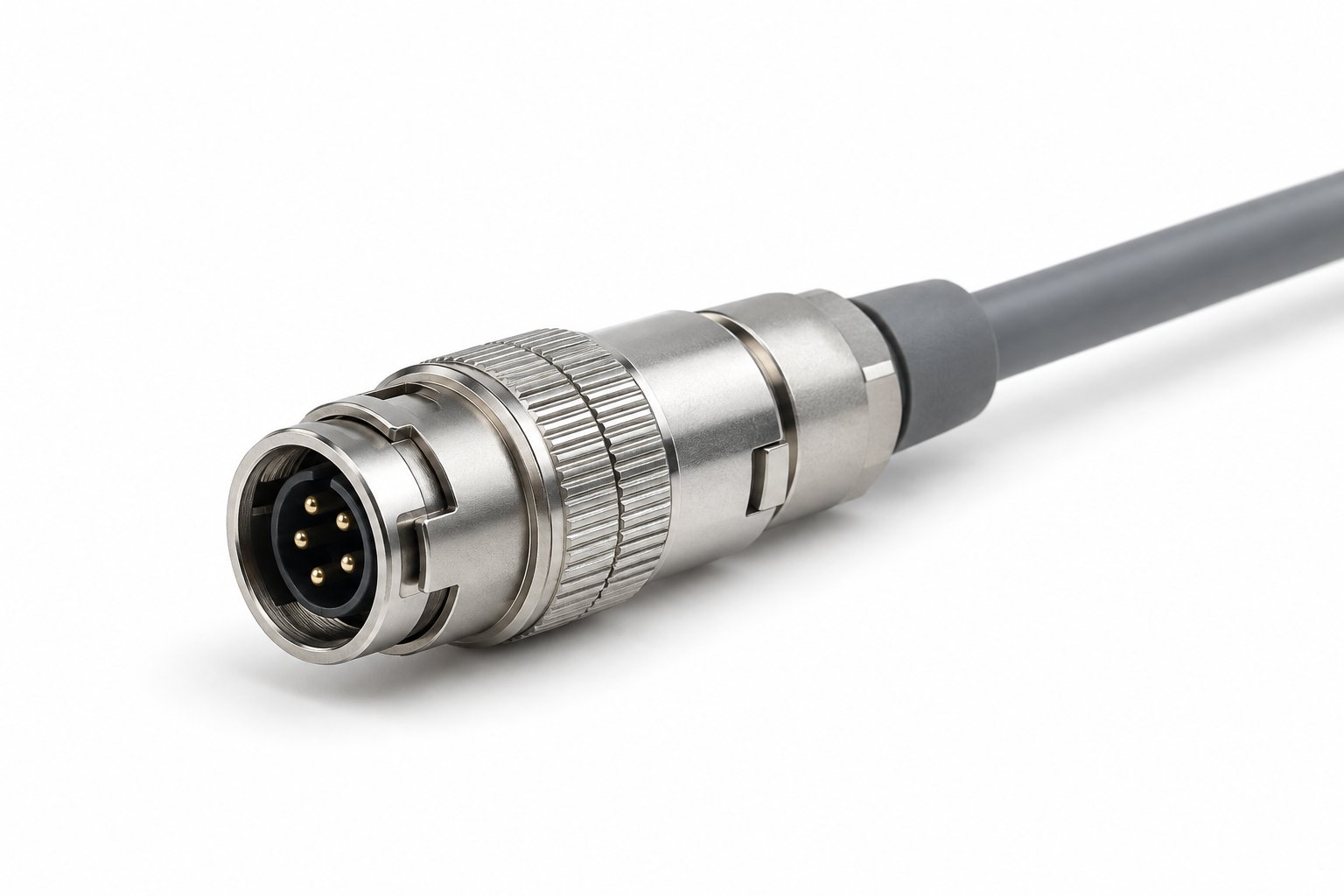

HR10 Machine Vision Straight Plug
Machine vision straight plug with 4–12 pins, push-pull or threaded locking, for industrial cameras and automation.
View specificationHR Series Knowledge
Technical Knowledge from the Product Catalogue
The HR Series serves industrial cameras and machine vision equipment: HR10 and HR25 shells from 8 mm to 14 mm mounting holes, 4 to 20 contacts, push-pull locking with five-key polarization, and threaded-lock variants for moving axes.
Key Features
- Contact counts of 4 / 6 / 8 / 10 / 12 / 20 pins
- Straight and elbow plug cable exits
- High-density insert layout saves panel space
- Push-pull locking combined with five-key polarization
- Full-metal one-piece shielding for excellent EMI resistance
- Solder and PCB termination supported
- Threaded-lock versions hold the mated pair against vibration
Technical Specifications
- Protection
- IP50 (mated)
- Mating cycles
- > 1,000
- Shock
- 100 G, 6 ms
- Working temperature
- -20 °C to +80 °C
- Shells
- HR10-7 (8 mm) / HR10-10 (11 mm) / HR10-13 (14 mm) / HR25
- Insulation resistance
- ≥ 1,000 MΩ
- Contact resistance
- ≤ 10 mΩ
- Materials
- Nickel-plated brass shell, gold-plated brass contacts, polyamide insert
- Standard
- IEC 61076-2-010
How the Product Code Works
HR codes start with the series (HR10 / HR25), followed by the version (blank base type, A economy type, G shielded type), the shell code (7 = 8 mm hole, 10 = 11 mm, 13 = 14 mm), the locking style (blank push-pull, T threaded), the shell form (P straight plug, LP elbow plug, R panel socket, J floating socket) and the contact code with pin style (P solder male, S solder female, PB / SB PCB styles).
Coding Examples
HR10A-7P-6PHR10 economy straight plug, 7-series shell (8 mm), push-pull locking, 6 solder male pins
HR25-13TR-20SBHR25 threaded-locking panel socket, 13-series shell (14 mm), 20 PCB-style female contacts
