K Series Rigid Waterproof Connectors
Rigid waterproof circular connectors, IP66–IP68, 2–30 pins, high shielding performance.
Product
K Series ZCG Long Elbow-Pin PCB Socket
IP66–IP68 externally threaded socket of the K Series with long right-angle bent PCB pins, 0K–3K shells.
View specification

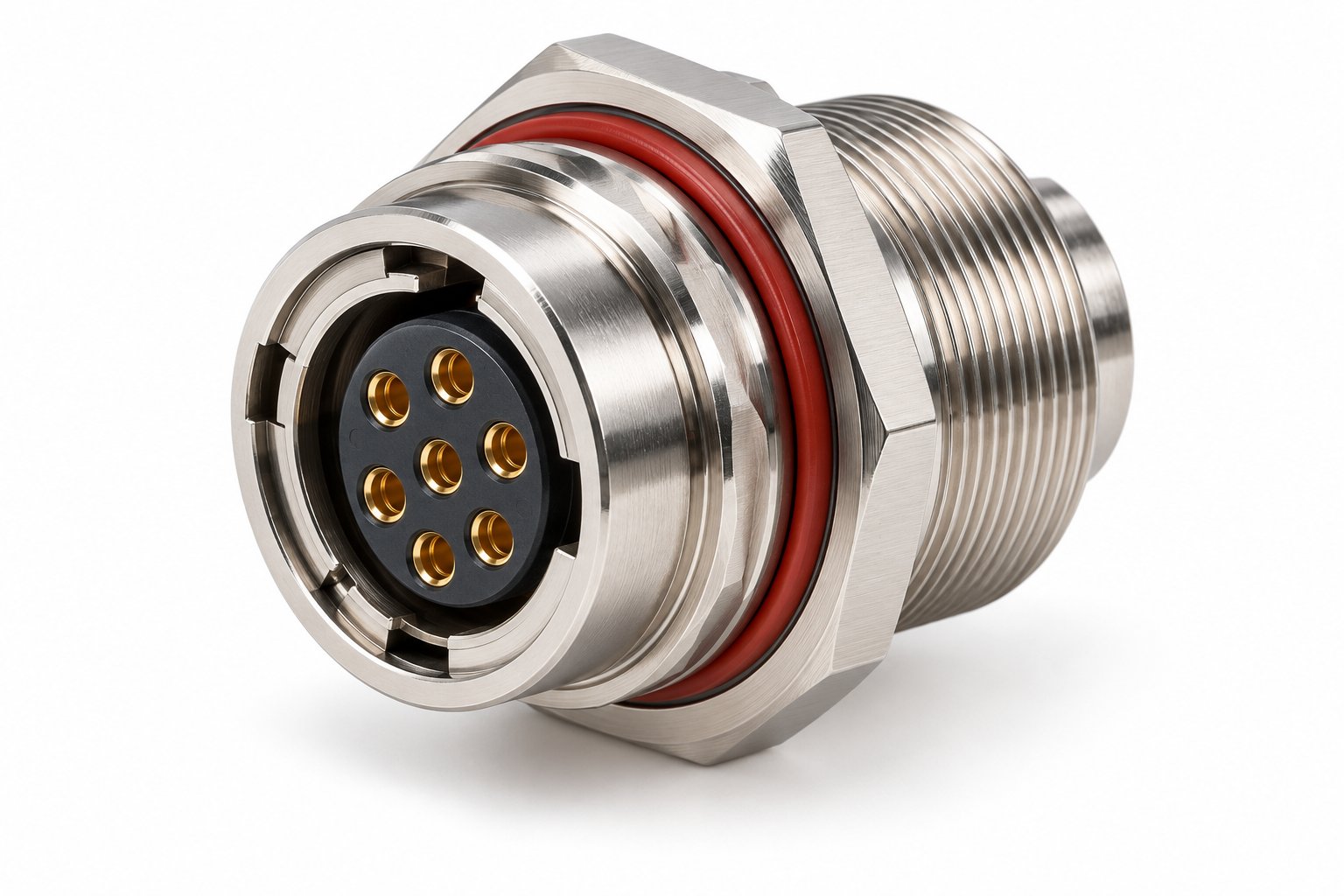

K Series ZEG Outer Fixed Socket
IP66–IP68 externally threaded fixed socket of the K Series, 2–30 pins, solder-wire and PCB layouts, 0K–4K shells.
View specification

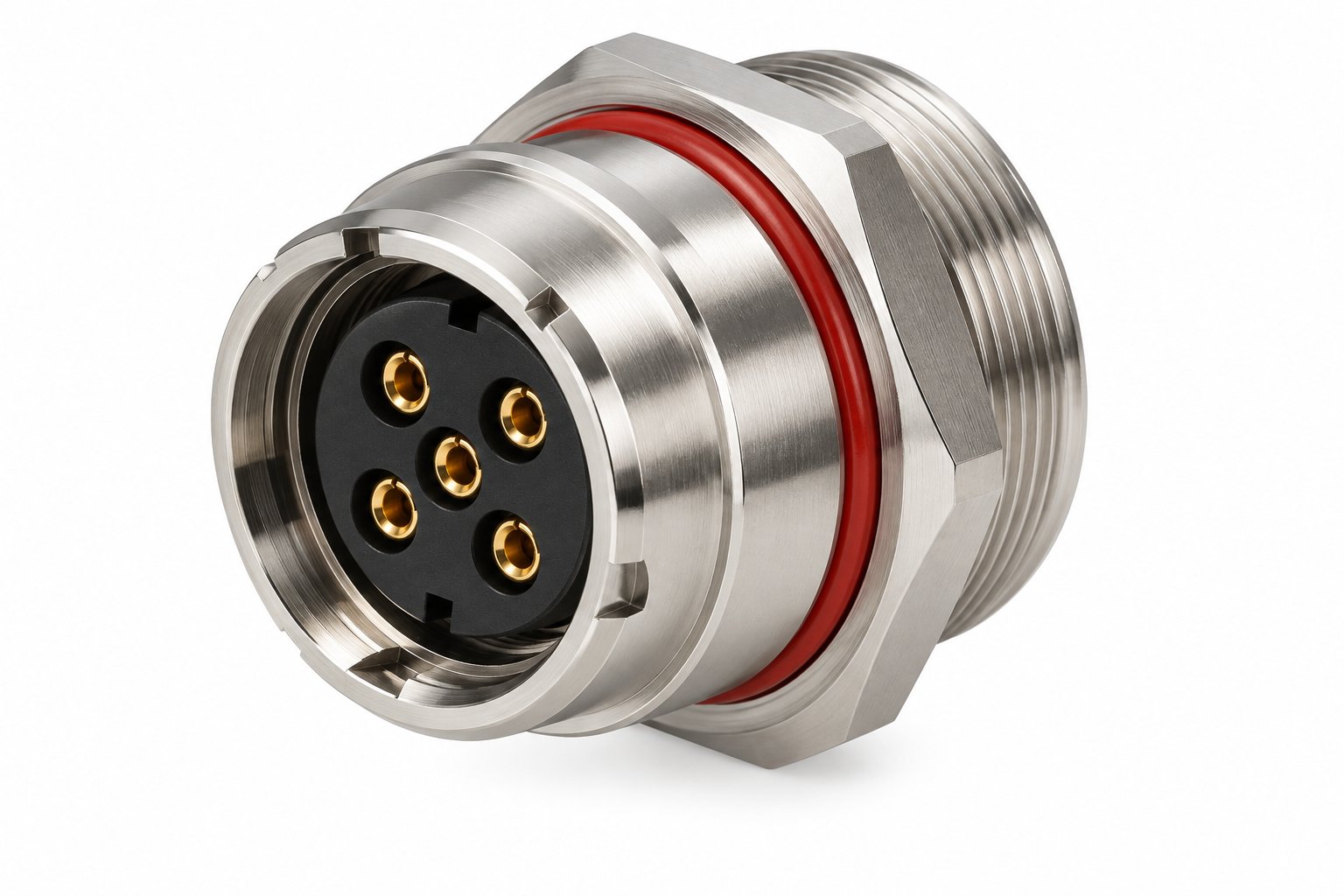

K Series ZGG Fixed Socket
IP66–IP68 internally threaded fixed socket of the K Series, 2–30 pins, solder-wire and PCB layouts, 0K–4K shells.
View specification

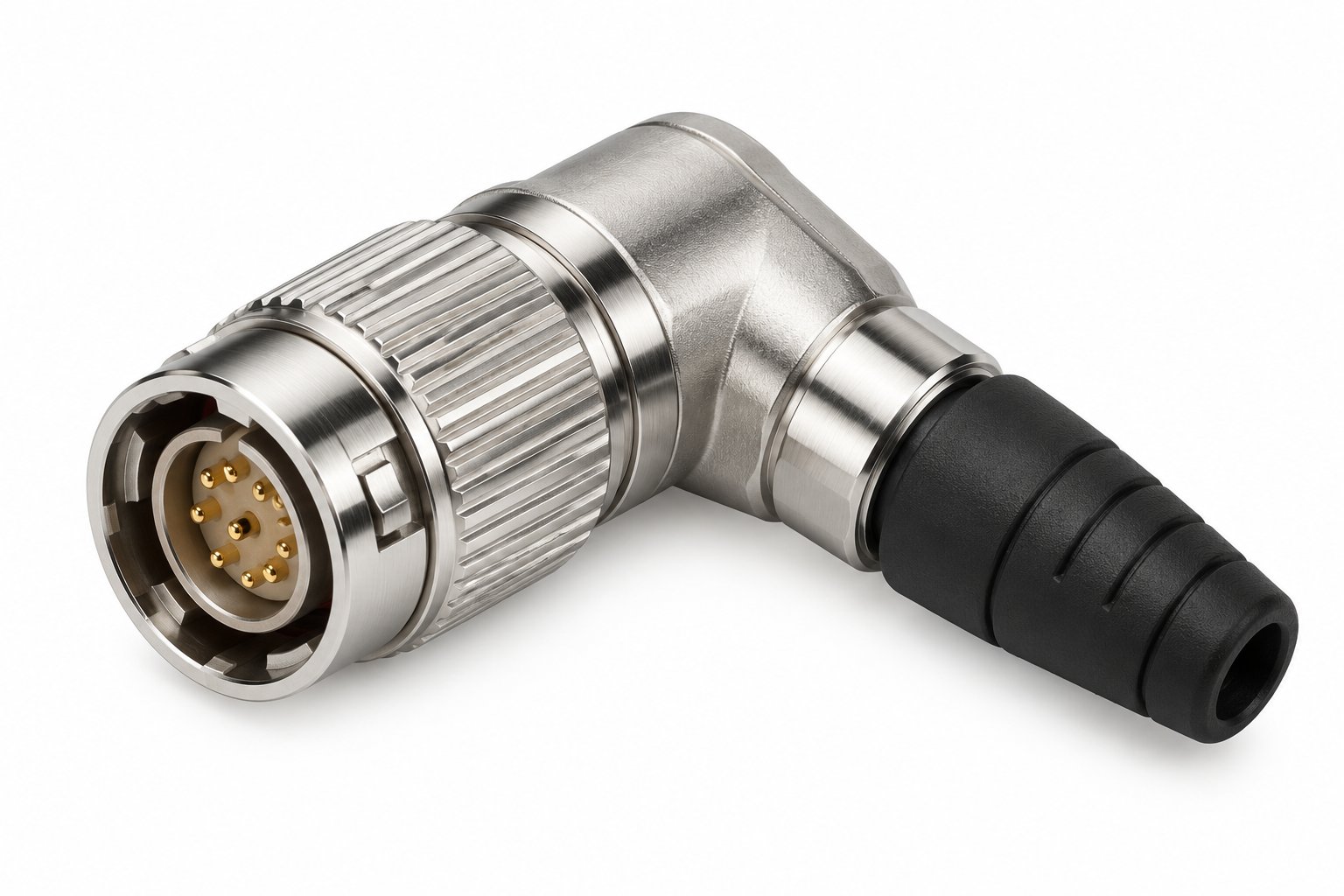

K Series THG 90° Elbow Plug
IP66–IP68 90° elbow plug of the K Series, 2–30 pins, over 5,000 mating cycles, nut and sleeve tails.
View specification

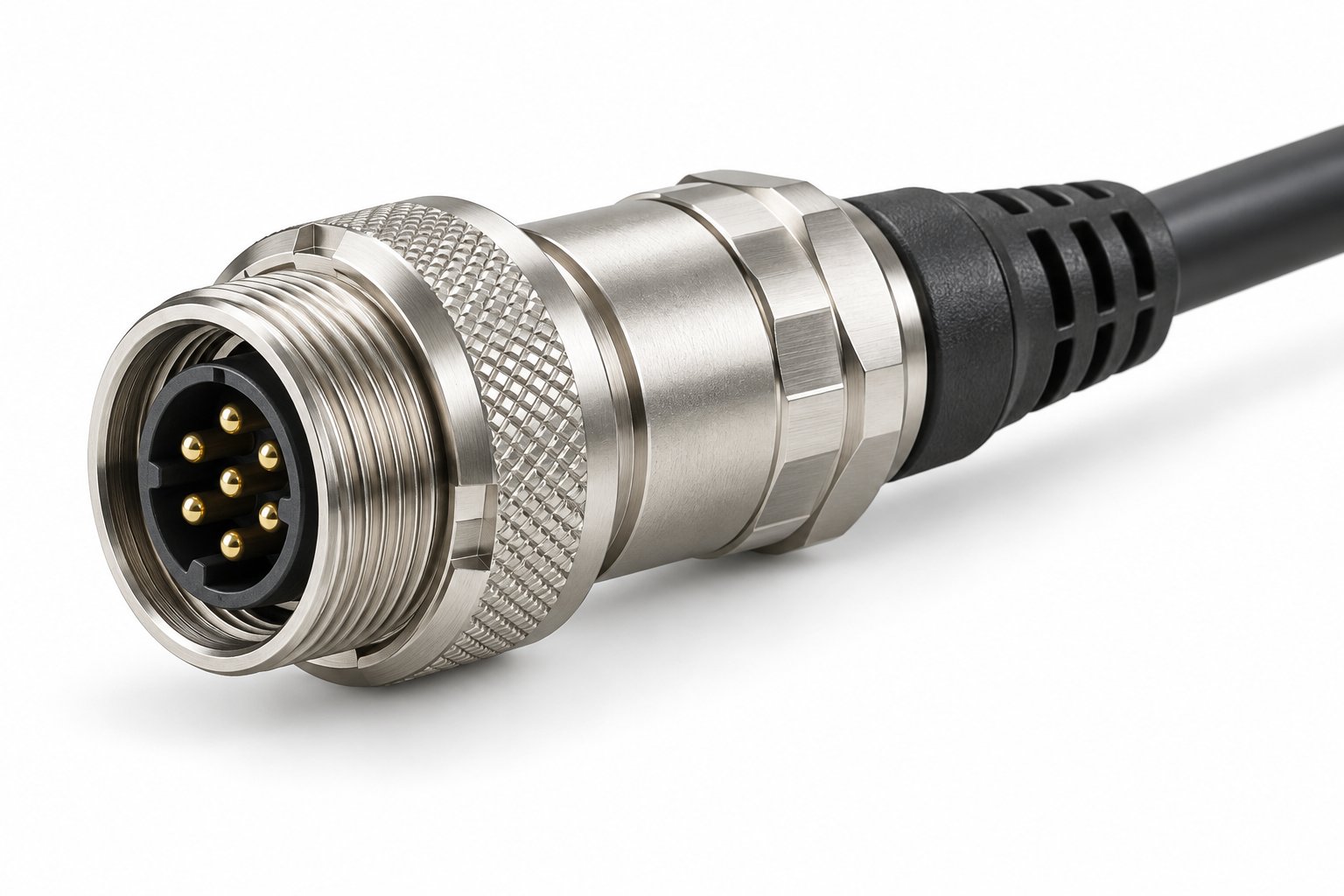

K Series TGG Rigid Waterproof Straight Plug
Rigid waterproof straight plug with IP66–IP68 sealing and high shielding, 2–30 pins, sizes 0K–4K.
View specification

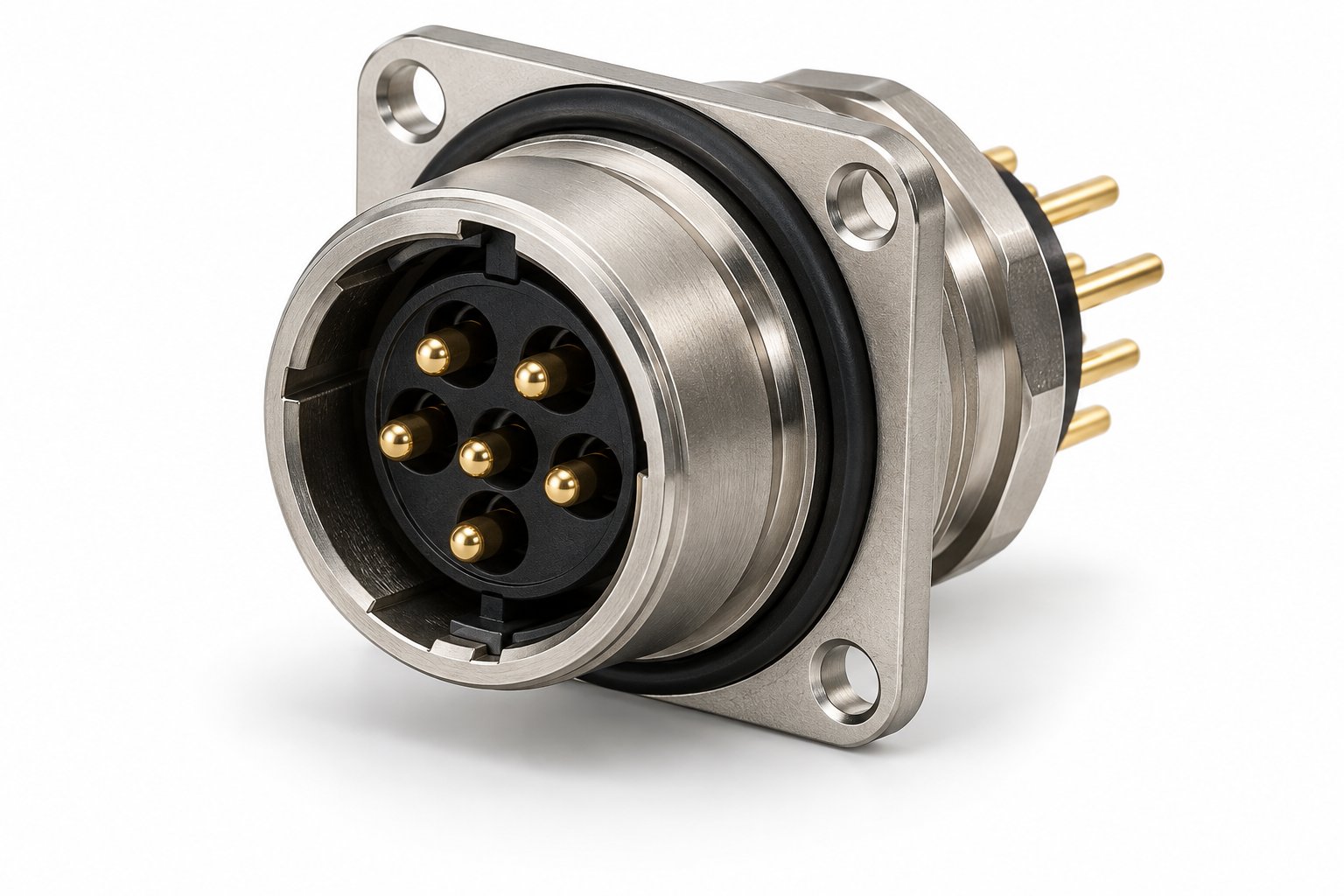

K Series DHG Waterproof Floating Socket
Waterproof floating socket of the K Series in nut and PCB versions, absorbing panel misalignment at IP66–IP68.
View specificationK Series Knowledge
Technical Knowledge from the Product Catalogue
The K Series is the rigid waterproof range: IP66 to IP68 sealing, 2 to 30 contacts, double O-rings at the mating face and panel thread, and shielding above 95 dB at 10 MHz.
Key Features
- Contact count from 2 to 30 pins
- Straight and elbow plug cable exits
- High-density insert layout saves panel space
- Push-pull self-locking: quick mating, secure latching
- Full-metal one-piece shielding for excellent EMI resistance
- Solder and PCB termination supported
- Positioning-pin anti-mismatch structure, G-type standard keying
- Multiple keying options prevent mismating of same-size connectors
Technical Specifications
- Protection
- IP66–IP68 (mated)
- Mating cycles
- > 5,000
- Vibration
- 10–2000 Hz, 15 G
- Shock
- 100 G, 6 ms
- Salt spray
- > 144 h
- Working temperature
- -55 °C to +250 °C
- Shielding
- > 95 dB @ 10 MHz; > 80 dB @ 1 GHz
- Insulation resistance
- ≥ 5,000 MΩ
- Contact resistance
- ≤ 10 mΩ
- Materials
- Nickel-plated brass shell, gold-plated brass contacts, PA66 insert, silicone seals
- Standard
- IEC 61076-2-010
How the Product Code Works
K Series codes combine the connector type (TGG straight plug, THG elbow plug, ZGG inner fixed socket, ZEG outer fixed socket, ZCG long elbow-pin socket, DHG floating socket), a positioning-pin letter, the shell size 0K to 4K, and the insert code whose last two digits give the contact count.
Coding Examples
TGG.2K.312.CLAD62Straight plug, G positioning, 2K shell, 12 contacts, chrome-plated brass shell, PPS insert, solder male contacts
DHG.2K.312.CLLD62ZFloating socket, 12 contacts, solder female contacts, protective boot tail
ZGG.2K.312.CLLInner-thread fixed socket, solder female contacts
