T Series Micro Waterproof Connectors

Micro waterproof circular connectors, IP66–IP68, 2–30 pins, compact shell sizes 0T–3T.

T Series Micro Waterproof Connectors

Push-pull self-lockingWaterproof & high sealingMachine vision & RJ45

Product

T Series ZEG Outer Fixed Socket
Technical fileMOQ OEM

T Series ZEG Outer Fixed Socket

IP66–IP68 miniature externally threaded fixed socket of the T Series, 2–30 pins, solder-wire and PCB layouts.

View specification
T Series ZGG Fixed Socket
Technical fileMOQ OEM

T Series ZGG Fixed Socket

IP66–IP68 miniature internally threaded fixed socket of the T Series, 2–30 pins, solder-wire and PCB layouts.

View specification
T Series THG 90° Elbow Plug
Technical fileMOQ OEM

T Series THG 90° Elbow Plug

IP66–IP68 miniature 90° elbow plug of the T Series, 2–30 pins, over 3,000 mating cycles, nut and sleeve tails.

View specification

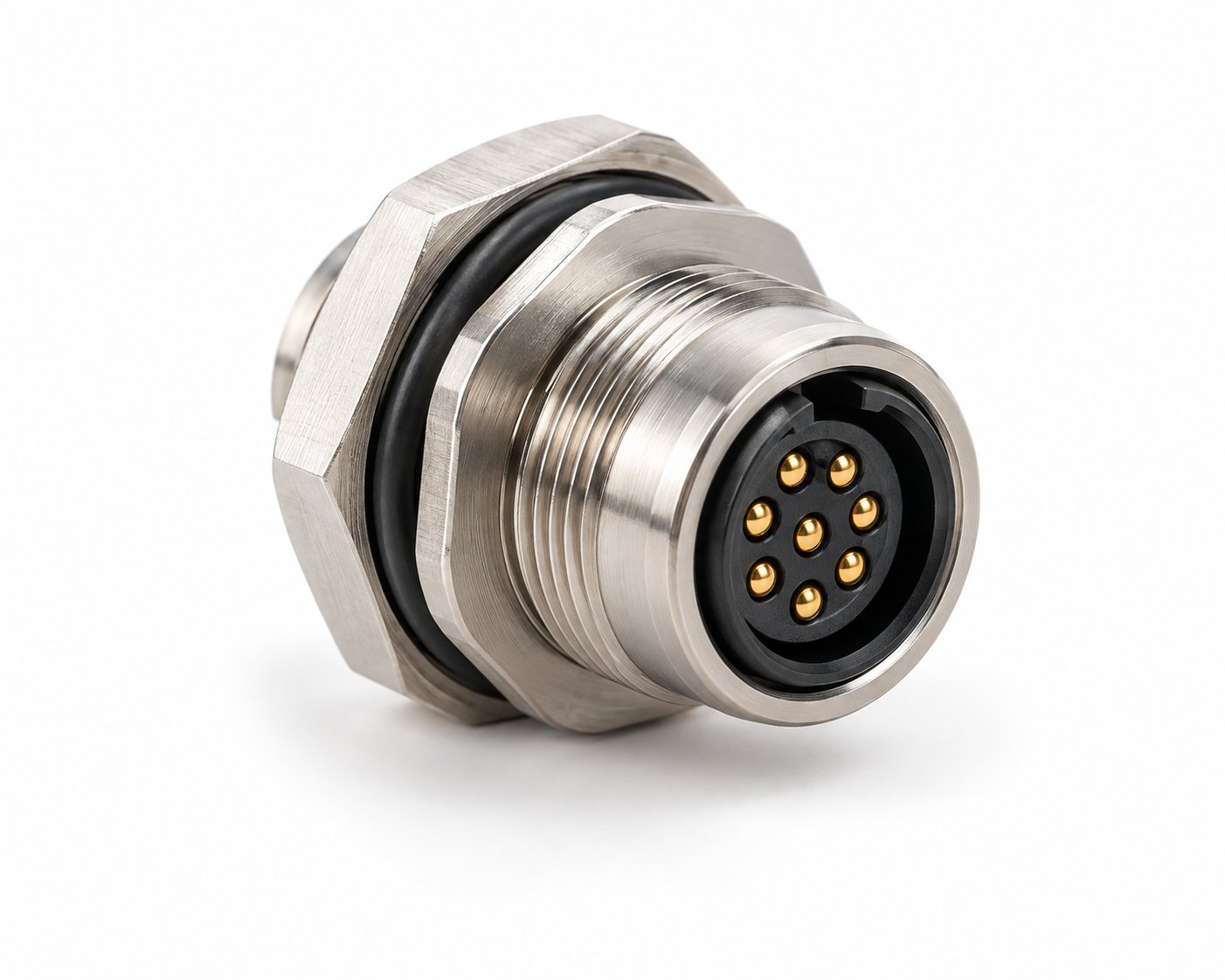

T Series DHG Micro Waterproof Floating Socket
Technical fileMOQ OEM

T Series DHG Micro Waterproof Floating Socket

Micro waterproof floating socket of the T Series with nut or PCB mounting in 0T–3T shell sizes.

View specification

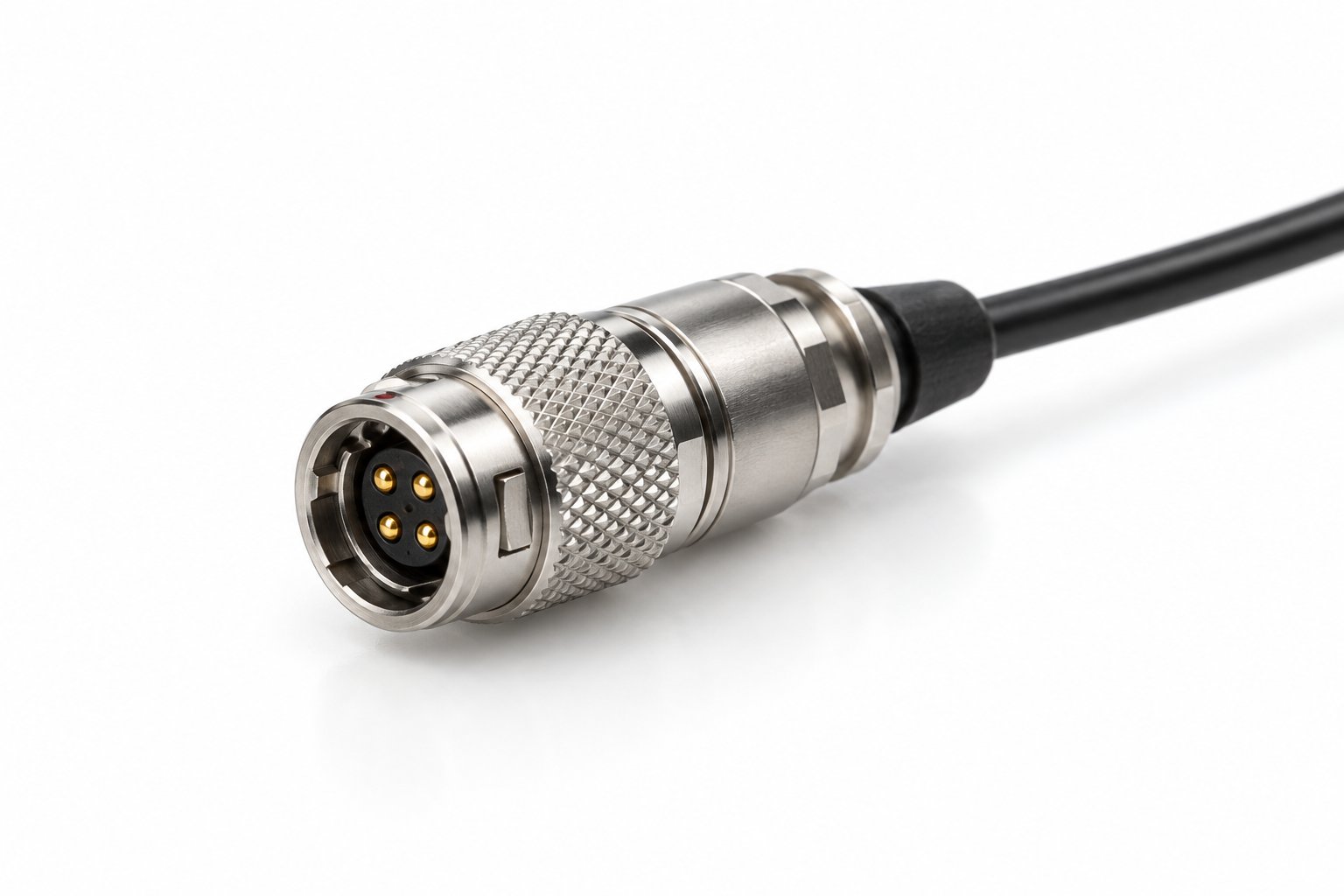

T Series TGG Micro Waterproof Straight Plug
Technical fileMOQ OEM

T Series TGG Micro Waterproof Straight Plug

Micro waterproof push-pull straight plug, 2–30 pins, IP66–IP68, compact 0T–3T shell sizes.

View specification

T Series Knowledge

Technical Knowledge from the Product Catalogue

The T Series packs the waterproof push-pull system into a miniature envelope: IP66 to IP68 sealing, 2 to 30 contacts, and shell sizes from 00T to 3T for compact outdoor devices.

Key Features

  • Contact count from 2 to 30 pins
  • Straight plug and floating socket layouts
  • High-density insert layout saves panel space
  • Push-pull self-locking: quick mating, secure latching
  • Full-metal one-piece shielding for excellent EMI resistance
  • Solder and PCB termination supported
  • Positioning-pin anti-mismatch structure, G-type standard keying
  • Multiple keying options prevent mismating of same-size connectors

Technical Specifications

Protection
IP66–IP68 (mated)
Mating cycles
> 3,000
Vibration
10–2000 Hz, 15 G
Shock
100 G, 6 ms
Salt spray
> 144 h
Working temperature
-55 °C to +250 °C
Shielding
> 75 dB @ 10 MHz; > 40 dB @ 1 GHz

How the Product Code Works

T Series codes combine the connector type (TGG straight plug, THG elbow plug, ZGG inner fixed socket, ZEG outer fixed socket, DHG floating socket), a positioning-pin letter, the shell size 00T to 3T, and the insert code whose last two digits give the contact count.

Coding Examples

TGG.00T.302.CLAD22

Straight plug, 00T shell, 2 contacts, chrome-plated brass shell, PPS insert, solder male contacts

DHG.0T.306.CLLD32Z

Floating socket, 6 contacts, solder female contacts, protective boot tail

ZGG.1T.312.CLL

Inner-thread fixed socket, 12 contacts
