P Series Plastic Connectors
Plastic push-pull connectors in 0P/1P/2P/3P shell sizes for medical, instrumentation and light industrial use.
Product
P Series PKG Long Elbow-Pin PCB Socket
Plastic fixed socket of the P Series with long right-angle bent PCB pins, hex nut mounting, 0P–3P shells.
View specification
P Series PRG Plastic Floating Socket
Plastic floating socket of the P Series with color-coded nut, push-pull latching, PC shell, PPS insulator, 1P–3P shells.
View specification

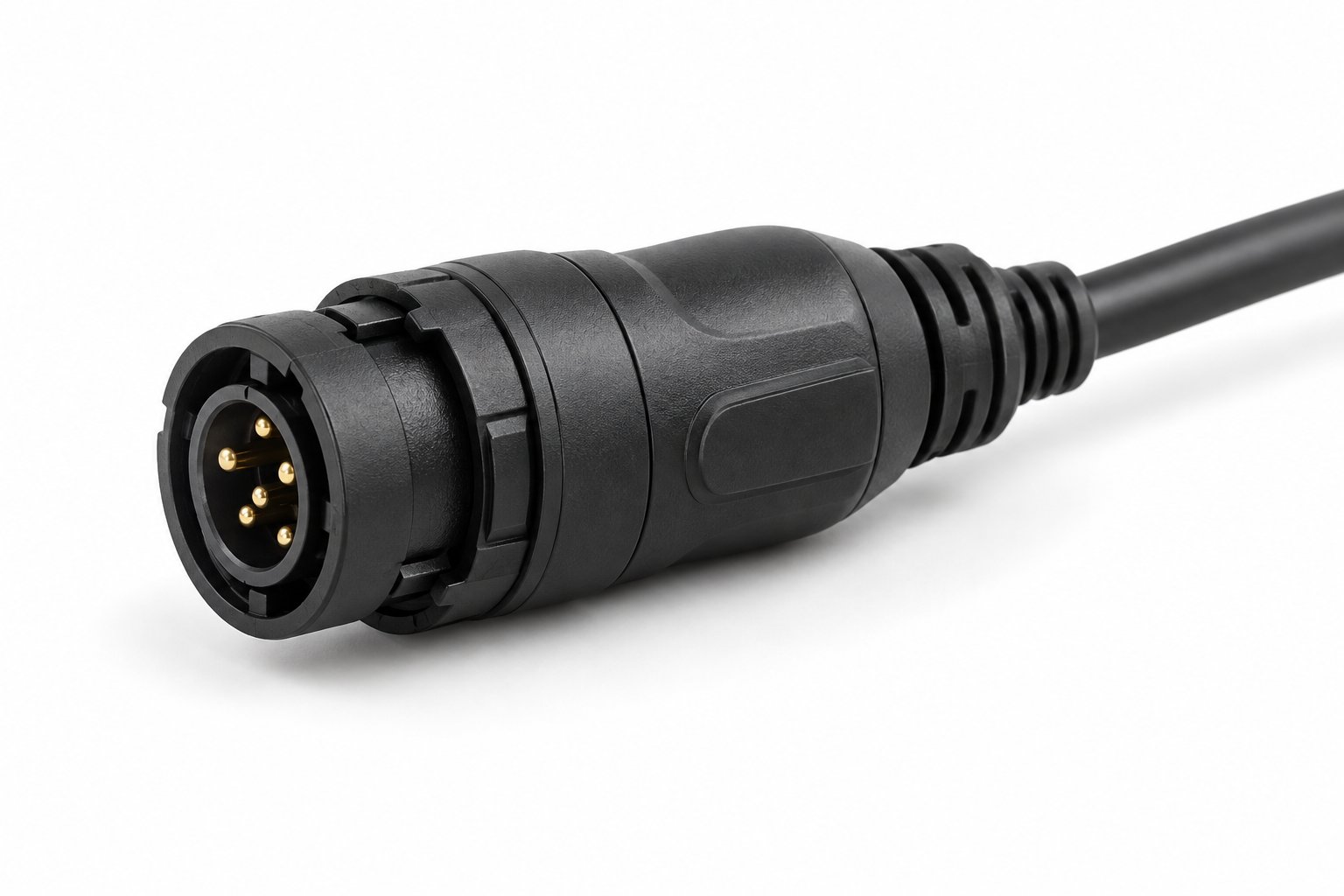

P Series PAG Plastic Push-Pull Straight Plug
Plastic push-pull straight plug in 0P–3P shell sizes, PC insulator rated -25 °C to +150 °C, over 2,000 mating cycles.
View specification

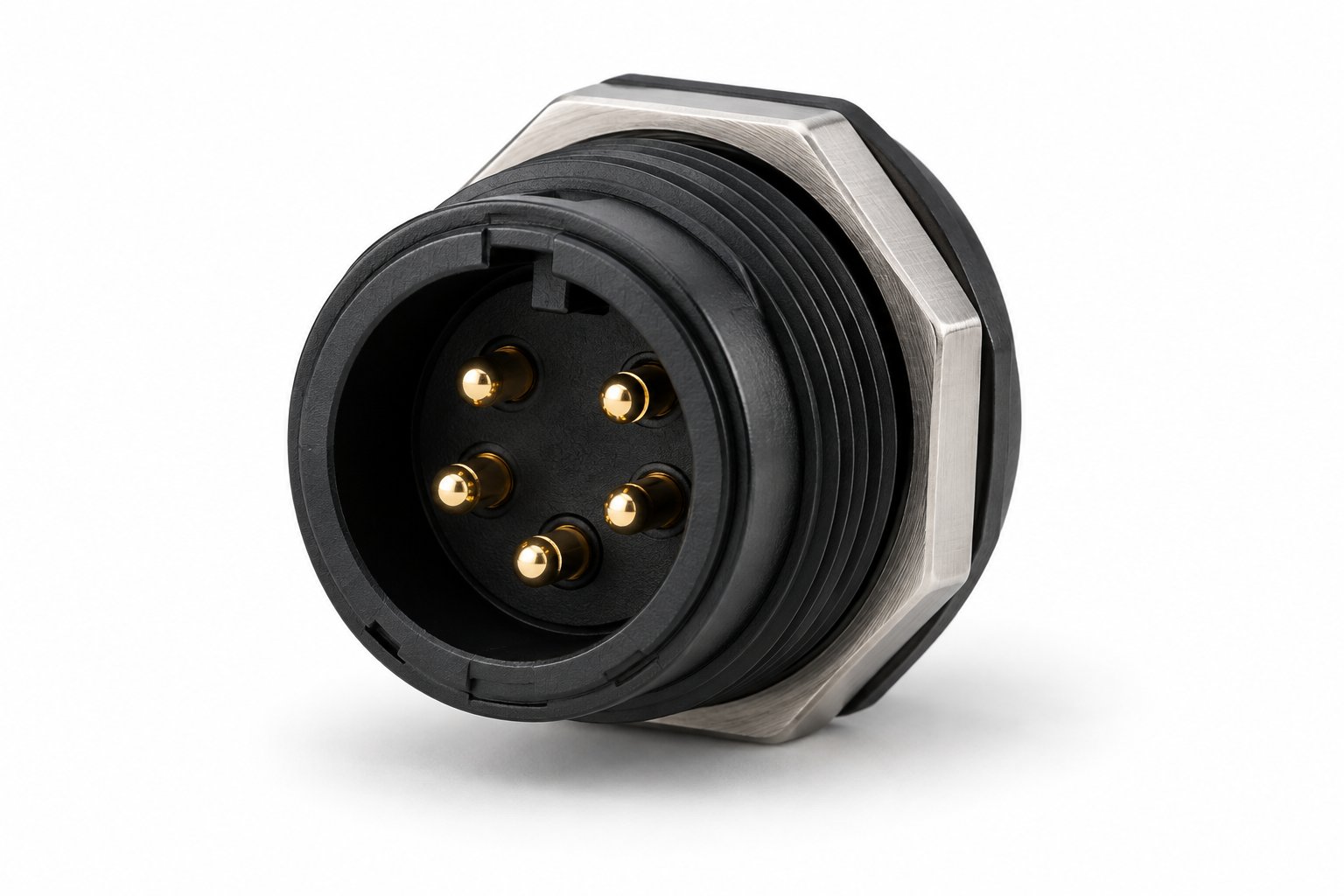

P Series PKG Plastic Fixed Socket
Plastic fixed socket with hex nut fixing, PCB and long elbow-pin options, matching the PAG push-pull plug.
View specificationP Series Knowledge
Technical Knowledge from the Product Catalogue
The P Series replaces the metal shell with engineering plastic for medical, beauty and laboratory instruments: a double-spring locking mechanism, color-coded tails that prevent mismating, and shell sizes from 0P to 3P.
Key Features
- Contact count from 2 to 32 pins
- Straight plug and floating socket layouts
- High-density insert layout saves panel space
- Plastic shell with double-spring locking and anti-rotation keyway
- Push-pull self-locking: quick mating, secure latching
- Color-coded plug tail nut and socket ring nut prevent mismating
- Multiple keying options prevent mismating of same-size connectors
Technical Specifications
- Protection
- IP50 / IP64 / IP66 by size (mated)
- Mating cycles
- > 2,000
- Working temperature
- -25 °C to +150 °C (PC shell)
- Shell sizes
- 0P (10 mm) / 1P (14 mm) / 2P (17 mm) / 3P (20 mm)
- Termination
- Solder, PCB and long elbow-pin PCB
