Medical Equipment
Medical instruments call for connectors that are light, insulated and easy to operate with one hand. The P Series uses a plastic push-pull design with a PC insulator rated -25 °C to +150 °C, covering 2–32 pins across its 0P, 1P, 2P and 3P shell sizes, with straight plugs, floating sockets and fixed sockets in one family.
Plastic shell, one-hand operation
Push-pull self-locking with a plastic housing keeps weight low and operation simple at the point of care.
PC insulator, wide working range
The PC insulator is rated from -25 °C to +150 °C, covering autoclave-adjacent workflows and warm equipment bays.
Four shell sizes, 2–32 pins
0P (10 mm) to 3P (20 mm) shells match cable diameters from 2.2 mm up to 9.5 mm and 2–32 pin layouts.
Complete plug-and-socket family

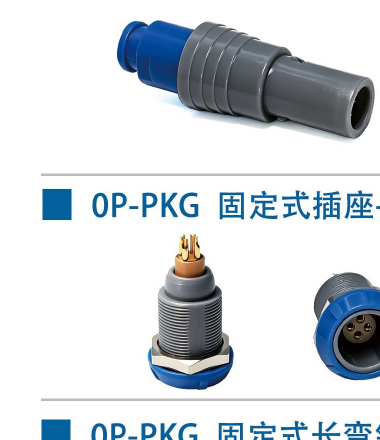

Straight plugs (PAG), floating sockets (PRG) and fixed sockets (PKG) cover the whole device side.
Selecting connectors for your project?
Tell us the pin count, sealing level, termination style and cable diameter of your application, and TRCONN will review the requirement and prepare a selection response.
