S Series Multi-Core & Coaxial Connectors
Multi-core and coaxial push-pull connectors, 2–24 pins, half-moon keying, sizes 00S to 4S.
Product

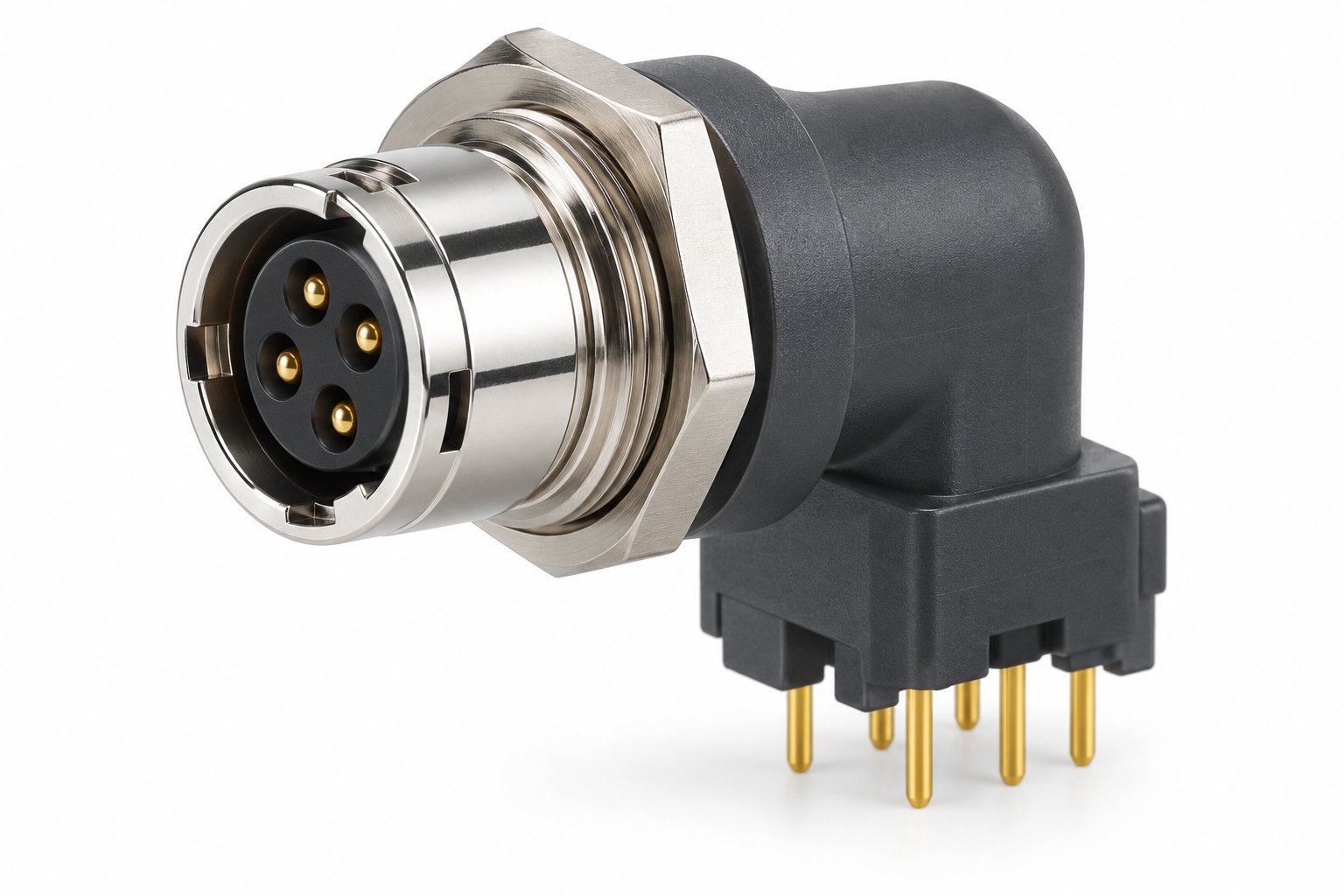

S Series ZXL 90° Elbow PCB Socket with Nut
90° elbow PCB socket of the S Series with hex nut mounting, straight solder pins, 0S–1S contact layouts.
View specification

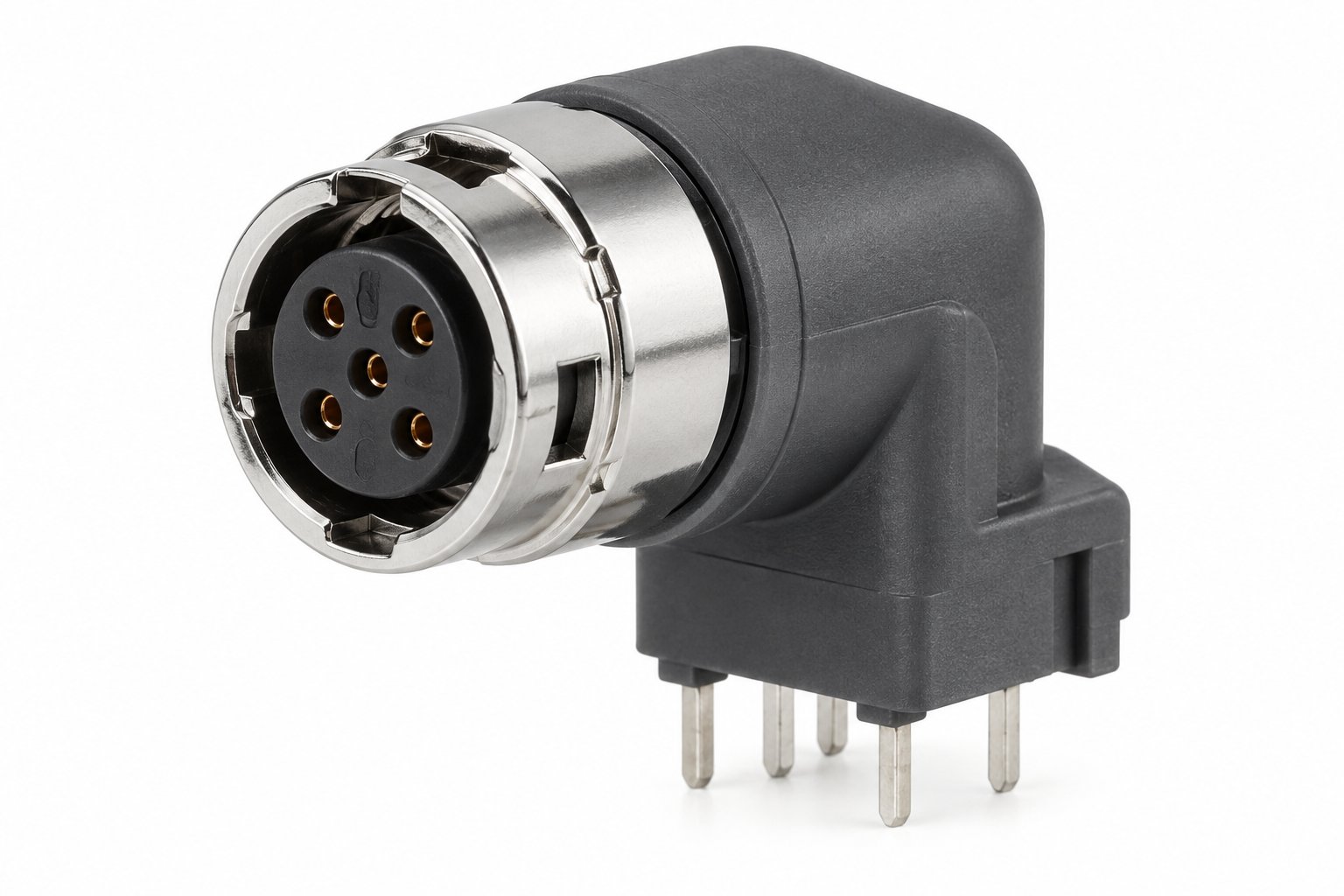

S Series ZPL 90° Elbow PCB Socket
90° elbow PCB socket of the S Series with straight solder pins, solder-wire bodies and PCB layouts, 0S–1S sizes.
View specification

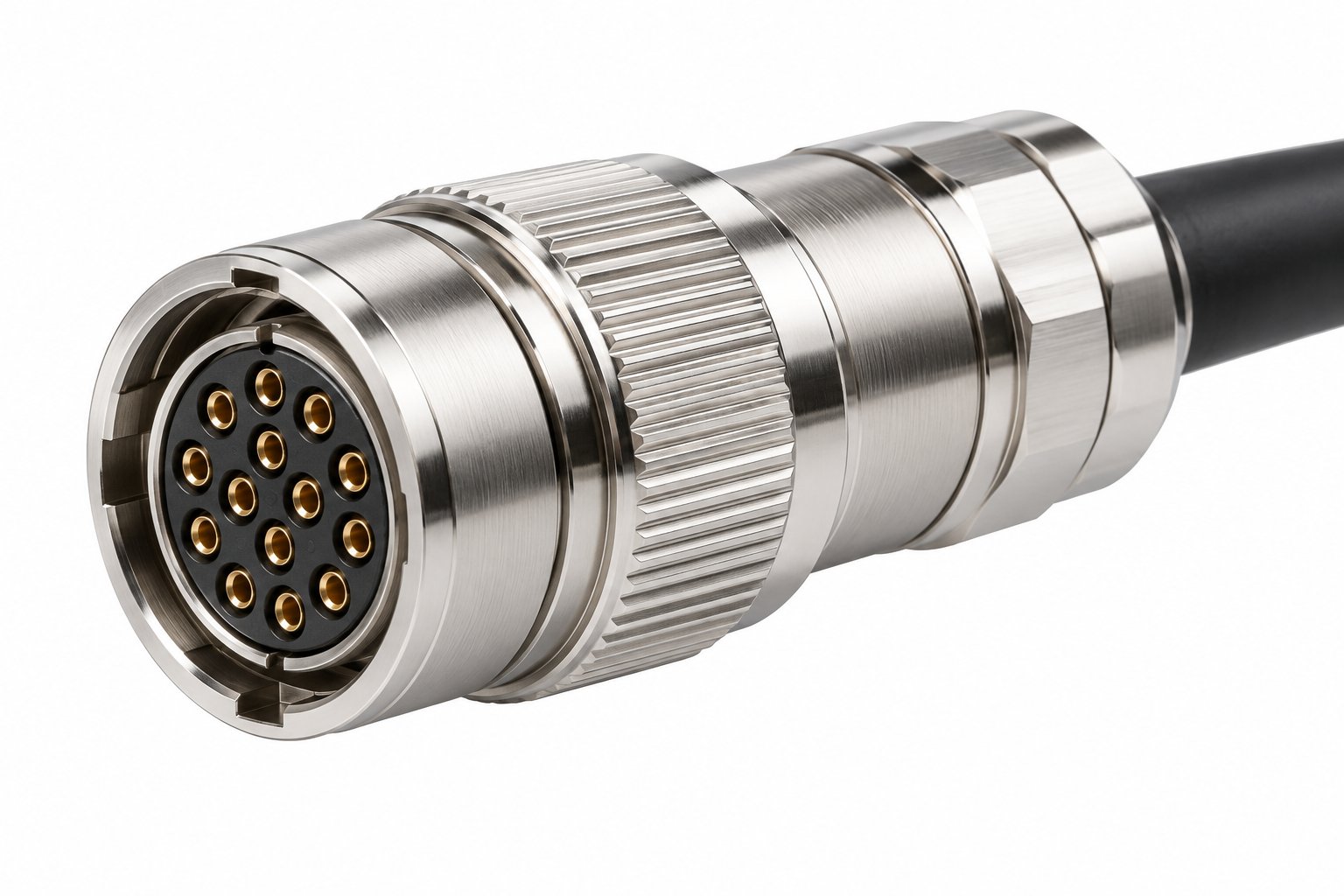

S Series DCA Multi-Core Floating Socket
Multi-core floating socket of the S Series with nut or sleeve tail, absorbing panel misalignment, 0S–4S shell sizes.
View specification

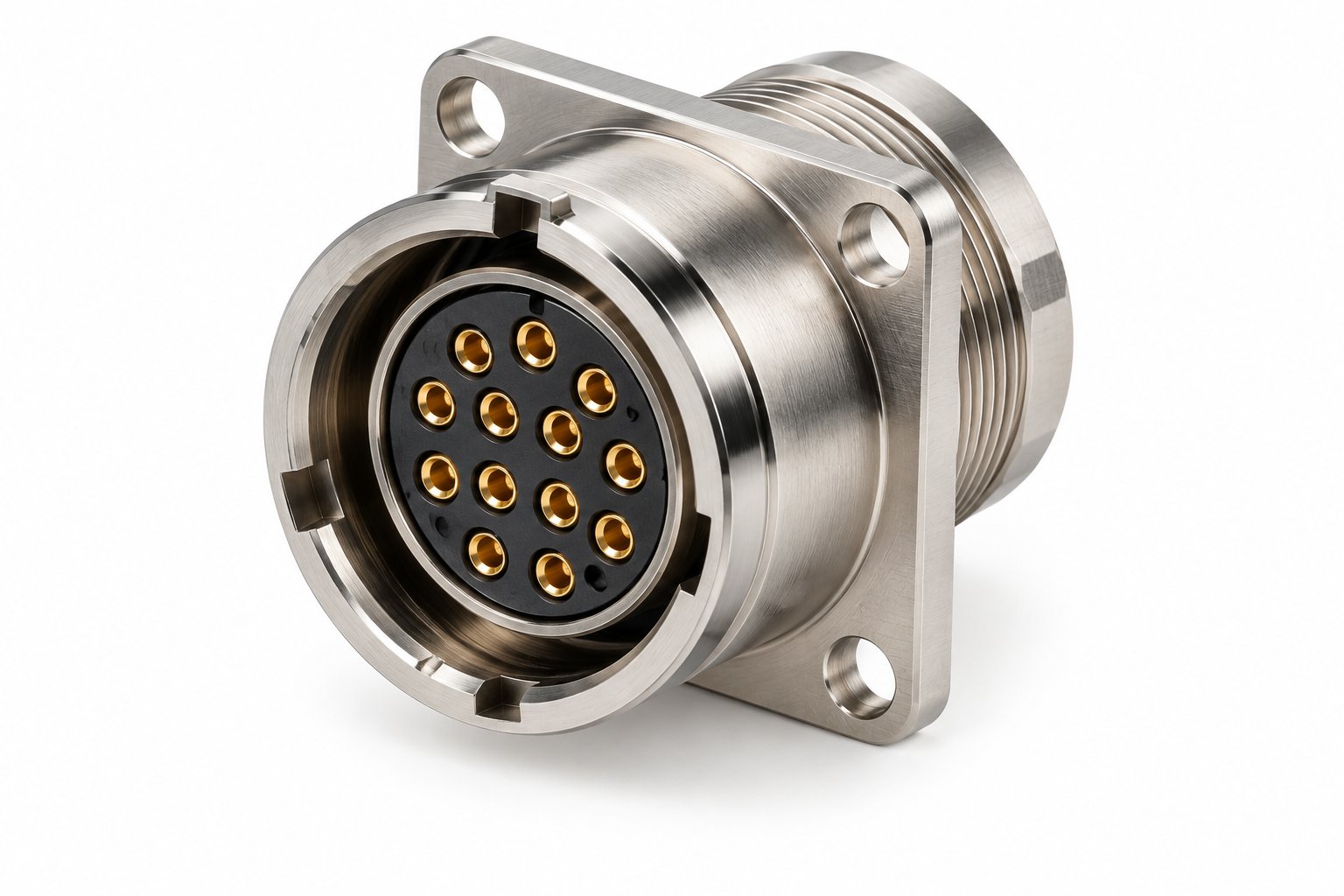

S Series ZRA Multi-Core Fixed Socket
Multi-core internally threaded fixed socket of the S Series, solder-wire and PCB layouts, 00S–4S shell sizes.
View specification

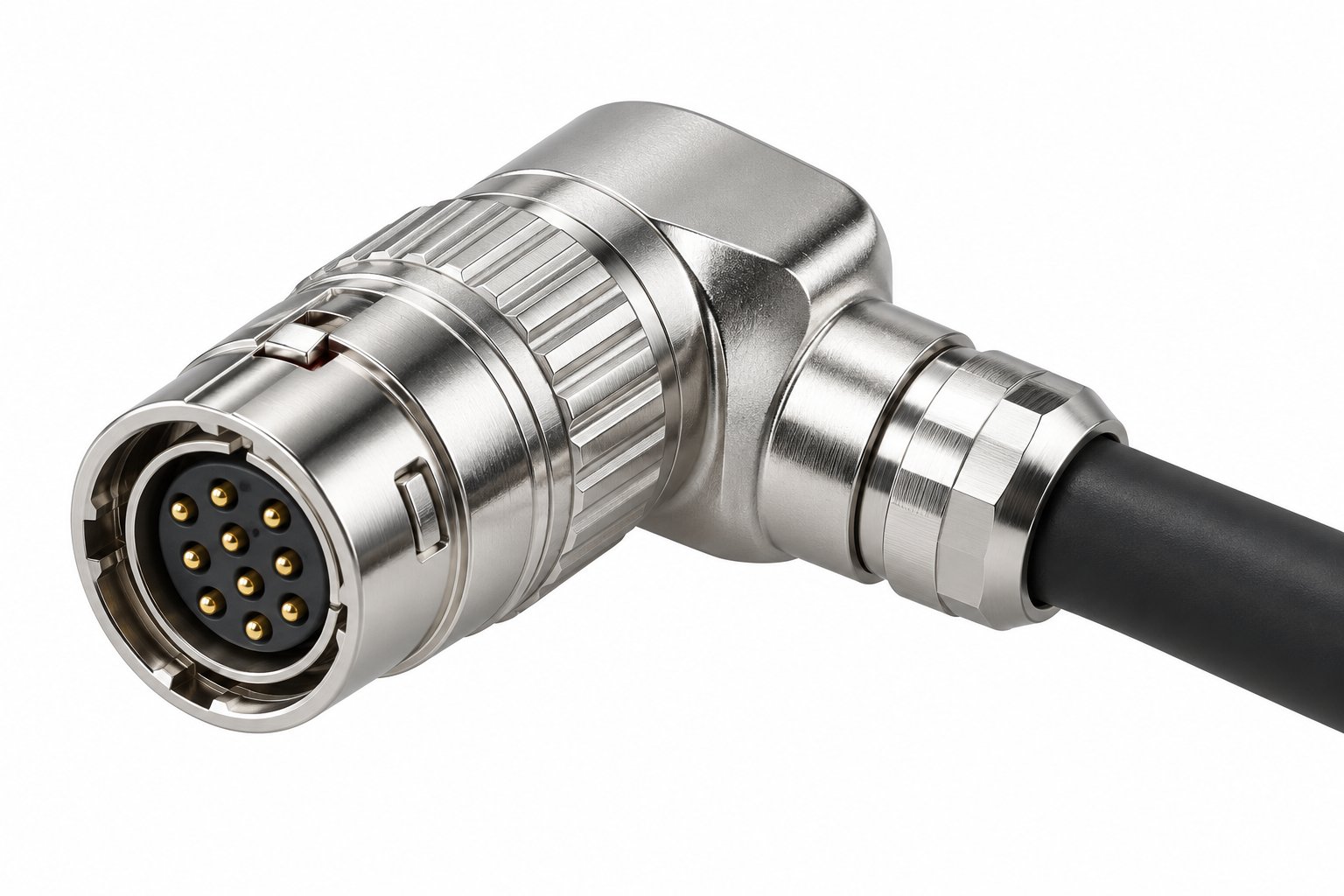

S Series TLA Multi-Core 90° Elbow Plug
Multi-core 90° elbow plug of the S Series, 2–24 pins with mixed layouts, IP50, sizes 0S–2S.
View specification

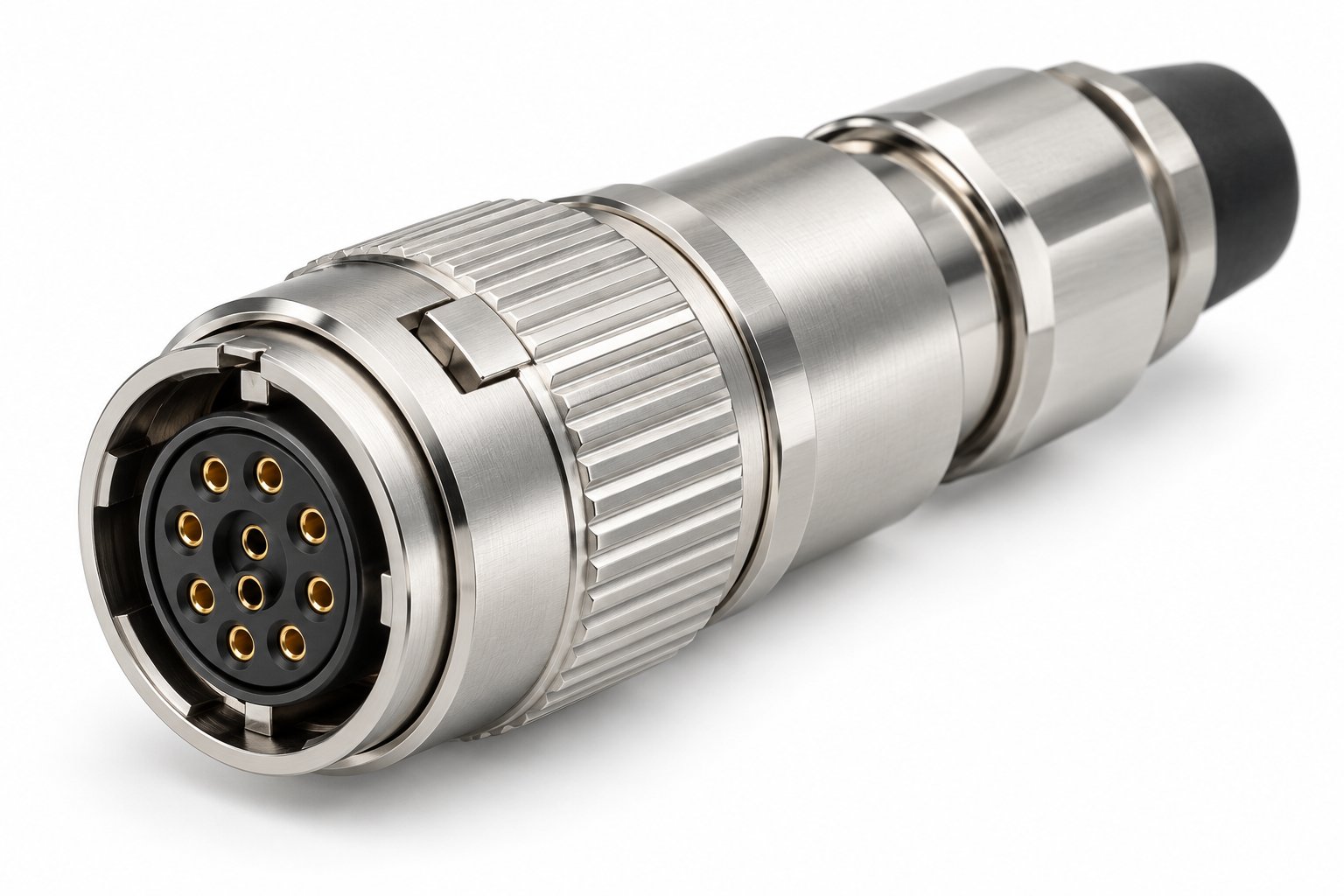

S Series TFA Multi-Core Straight Plug
Multi-core straight plug of the S Series, 2–24 pins with mixed power/coaxial layouts, IP50, sizes 00S–4S.
View specification

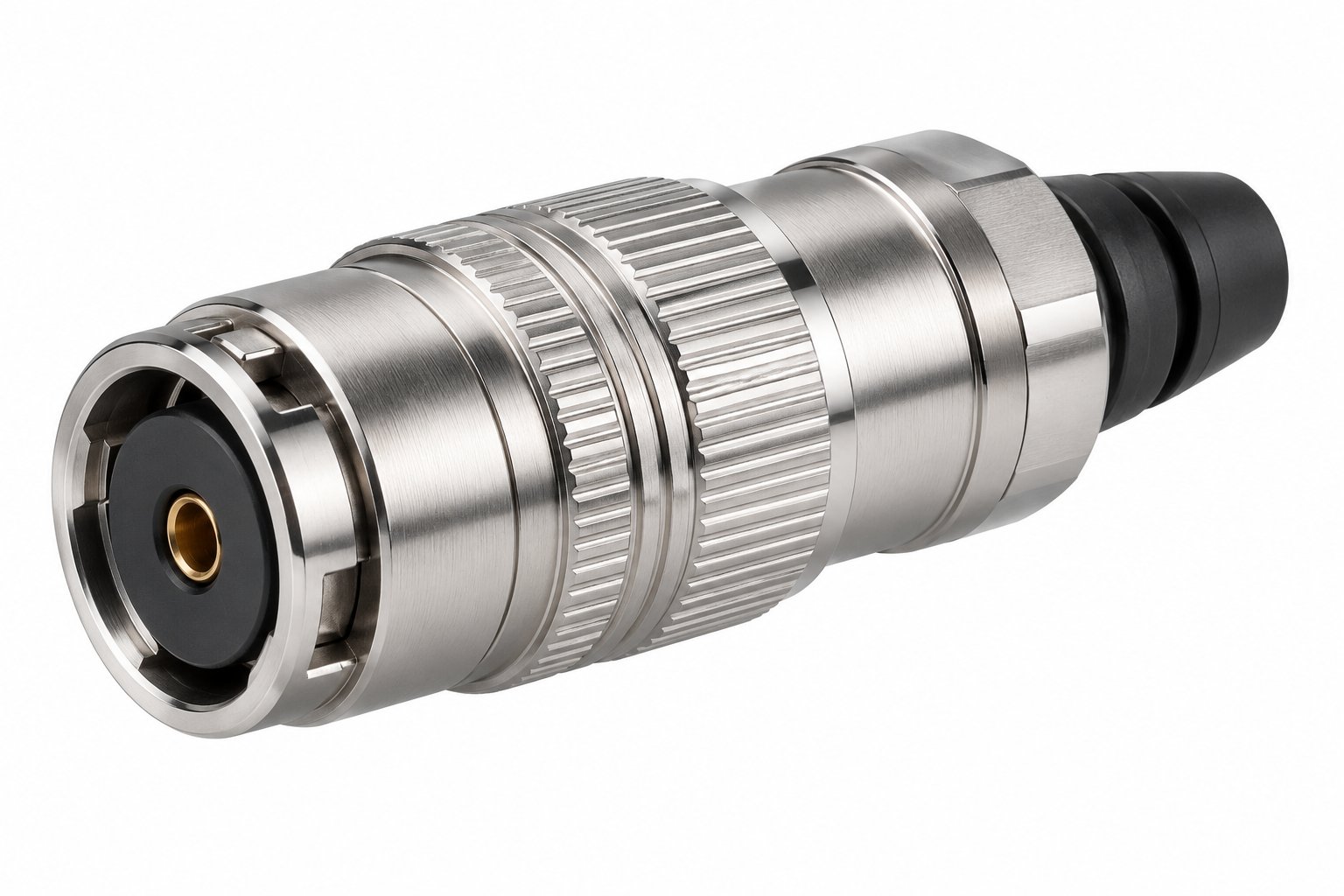

S Series DCA Floating Socket — Single Core
Single-core floating socket of the S Series, absorbing panel misalignment, 0S–4S shell sizes, IP50 mated.
View specification

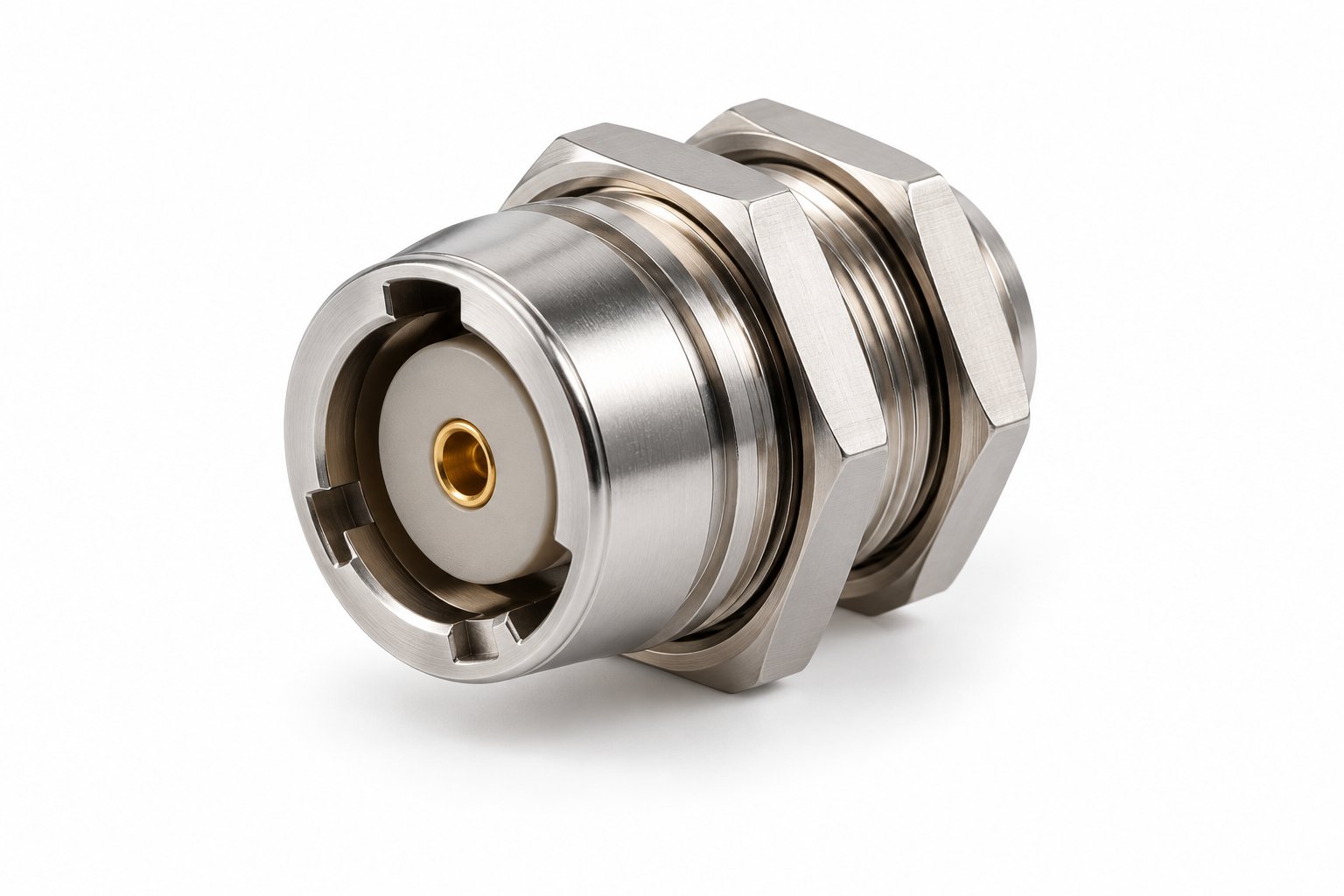

S Series ZRD Double-Nut Socket — Single Core
Single-core double-nut socket of the S Series for front-of-panel installation, 0S–4S shell sizes.
View specification

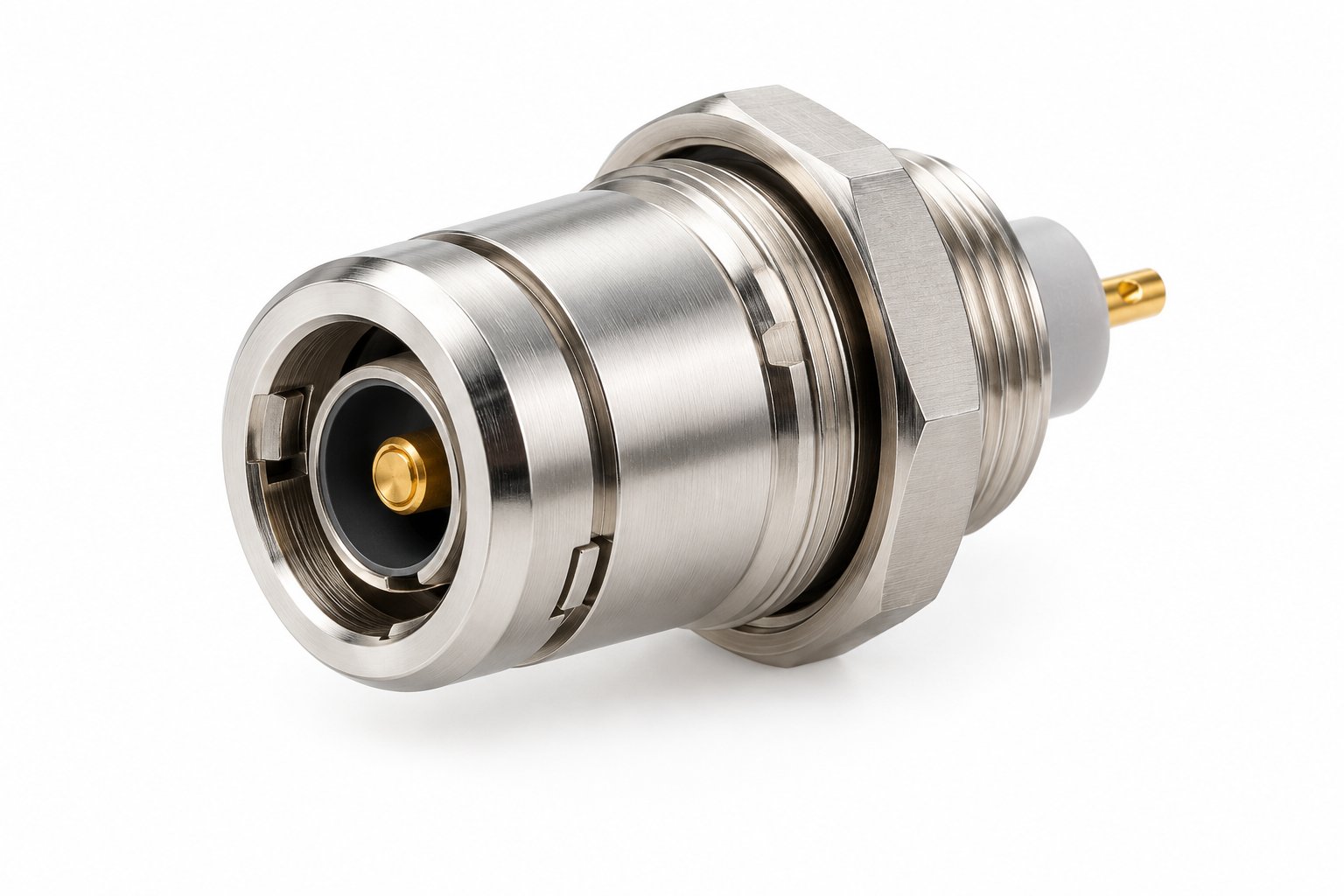

S Series ZRA Fixed Socket — Single Core
Single-core internally threaded fixed socket of the S Series, 00S–4S shell sizes, IP50, over 5,000 mating cycles.
View specificationS Series Knowledge
Technical Knowledge from the Product Catalogue
The S Series covers multi-core and coaxial push-pull connections from 2 to 24 contacts, with half-moon stepped inserts that carry power, signal and coaxial contacts side by side.
Key Features
- Contact count from 2 to 24 pins
- Straight and 90° elbow cable exits
- High-density insert layout saves panel space
- Push-pull self-locking: quick mating, secure latching
- Full-metal one-piece shielding for excellent EMI resistance
- Solder and PCB termination supported
- Half-moon stepped inserts with male and female contacts for polarity orientation
Technical Specifications
- Protection
- IP50 (mated)
- Mating cycles
- > 5,000
- Vibration
- 10–2000 Hz, 15 G
- Shock
- 100 G, 6 ms
- Salt spray
- > 144 h
- Working temperature
- -55 °C to +230 °C
How the Product Code Works
S Series codes combine the connector type (TFA straight plug, TLA elbow plug, ZRA fixed socket, ZRD double-nut socket, DCA floating socket), shell size 00S to 4S, and the insert code whose last two digits give the contact count. Available counts grow with the shell: 2S carries up to 10 contacts, 4S up to 24.
Coding Examples
TFA.1S.304.CLAD32Straight plug, 1S shell, 4 contacts, chrome-plated brass shell, PPS insert, solder male contacts, 3.2 mm cable clamp
DCA.1S.304.CLLD62ZFloating socket, 4 contacts, solder female contacts, protective boot tail
ZRA.1S.304.CLLInternally threaded fixed socket, solder female contacts
