Industrial Automation & Robotics
Robots, servo axes and automated lines repeatedly flex, vibrate and wash down their cabling. Push-pull self-locking connectors keep the loop closed with clear haptic feedback, while rigid waterproof K Series versions add IP66–IP68 sealing and strong EMC shielding for drives and inverters. Locking RJ45 connectors keep industrial Ethernet links seated on moving equipment.
Locked against vibration and pull-out
Push-pull locking resists vibration and pull-out and releases only when the unlocking sleeve is pulled — no tools, one hand.
Proven mechanical endurance
Over 5,000 mating cycles, 10–2000 Hz vibration at 15 G and 100 G mechanical shock across the B, K and T families.
Keyed against mis-mating
Multi-position keying and the standard G-type alignment key prevent wrong connections between same-size connectors.
Sealed and shielded options
K Series offers IP66–IP68 sealing with >95 dB shielding at 10 MHz and >80 dB at 1 GHz for noisy drive cabinets.
Connectors for this application

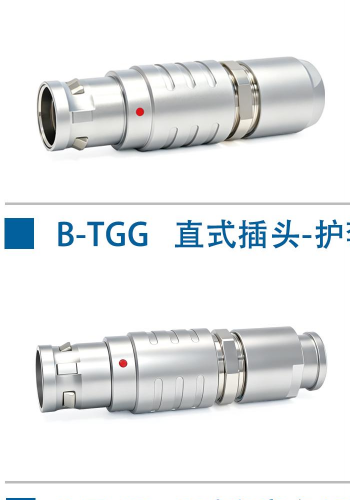

B Series Push-Pull Self-Locking Connectors
2–32 pins, IP50, over 5,000 mating cycles, 0B/1B/2B shell sizes, brass chrome-plated shells.
K Series Rigid Waterproof Connectors
2–30 pins, IP66–IP68, high shielding for drives and outdoor machinery, sizes 0K–4K.

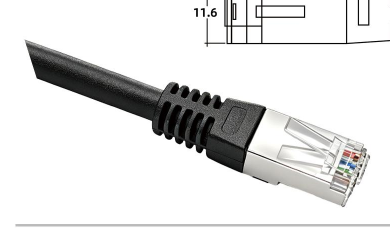

RJ45 Industrial Network Connectors
Molded, assembled and waterproof RJ45 versions with vertical or horizontal locking.
Selecting connectors for your project?
Tell us the pin count, sealing level, termination style and cable diameter of your application, and TRCONN will review the requirement and prepare a selection response.
