F Series High-Sealing Connectors
High-sealing push-pull connectors with IP68 protection, 2–27 pins and precision ring guiding.
Product

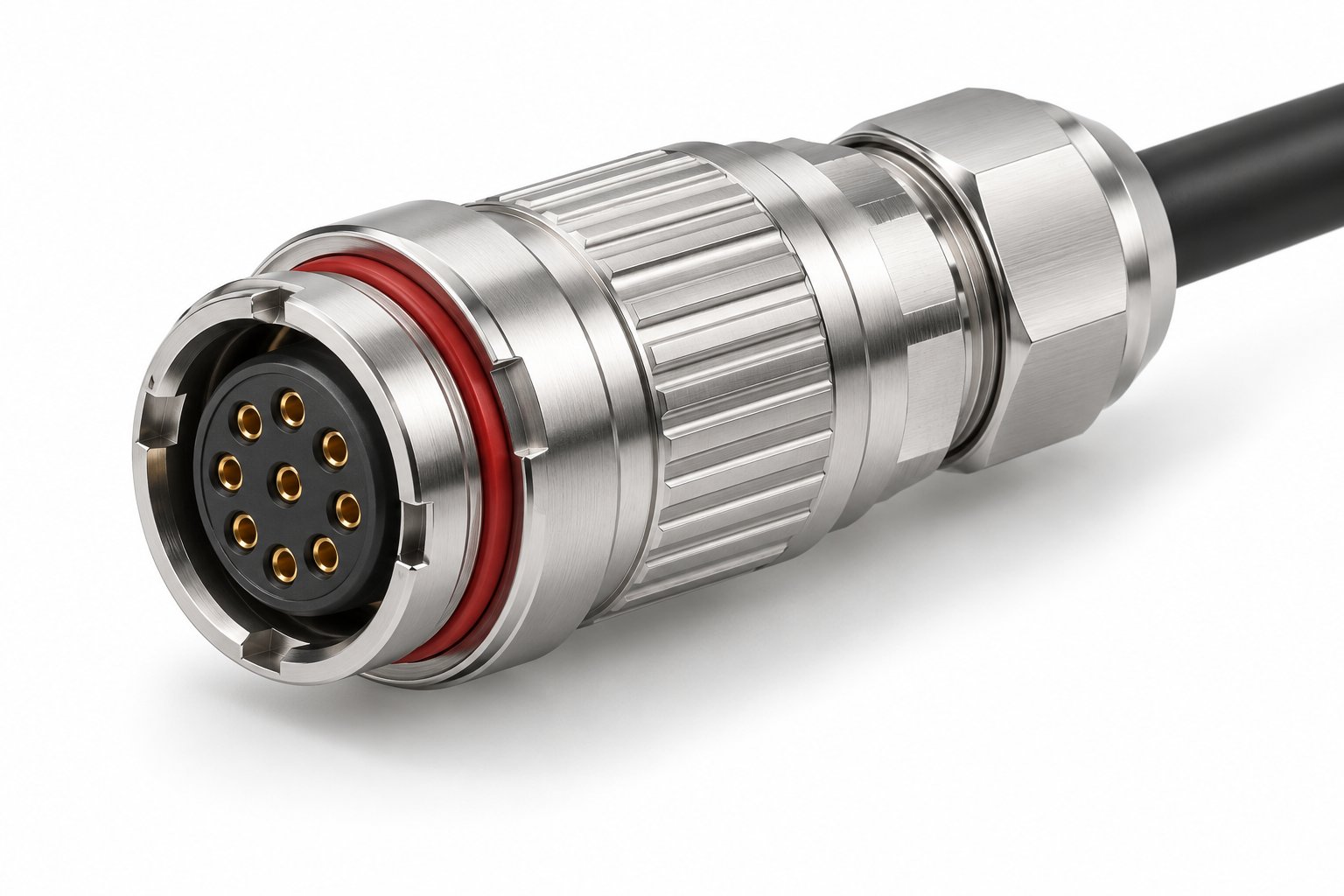

F Series DHG Floating Socket
IP68 floating socket of the F Series, absorbing panel misalignment, 2–27 pins, 0F–3F shell sizes.
View specification

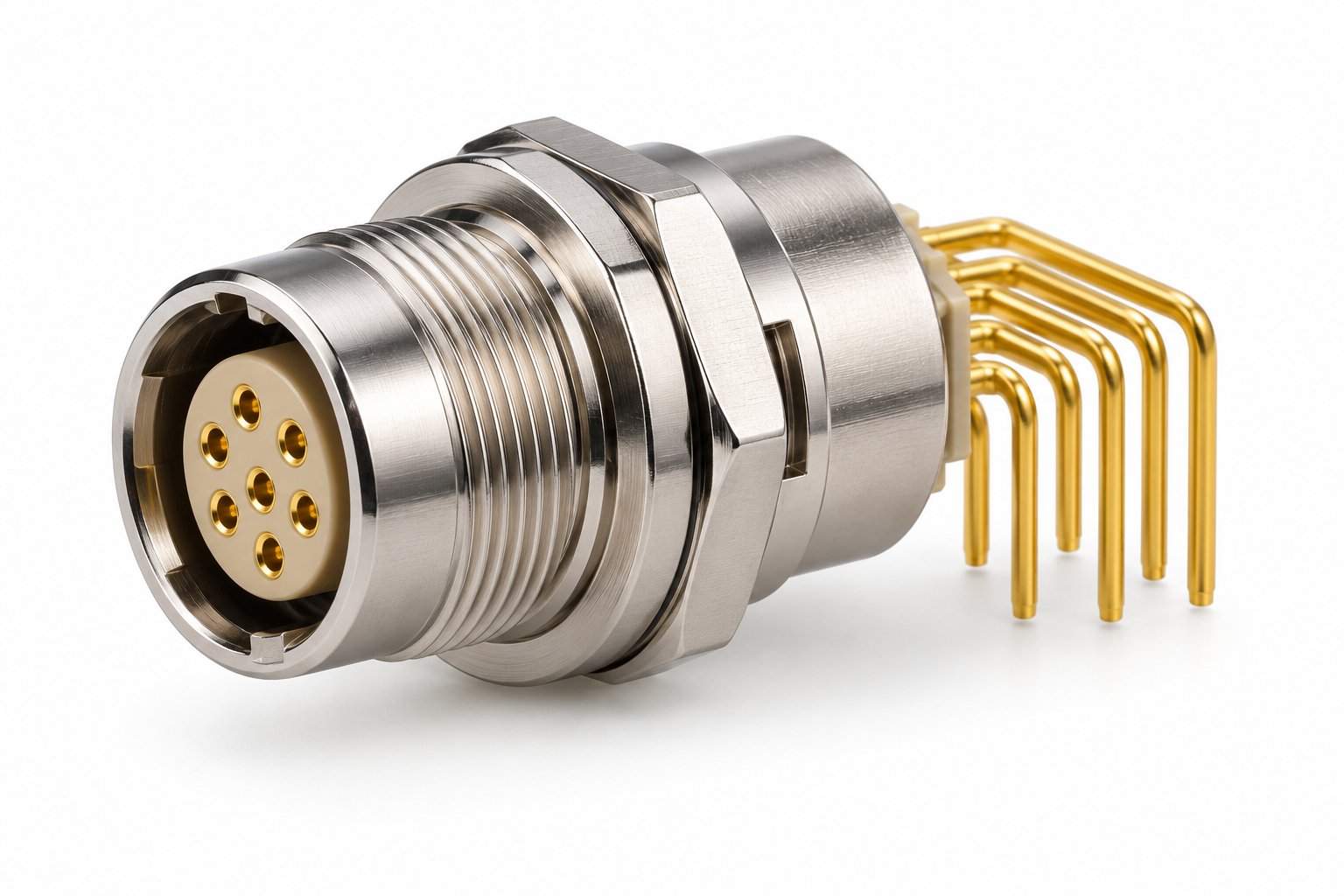

F Series ZCG Long Elbow-Pin Socket
IP68 externally threaded socket of the F Series with long right-angle bent PCB pins, 0F–1.5F shell sizes.
View specification
F Series ZLG Outer Sealed Fixed Socket
IP68 externally threaded sealed socket of the F Series, 0F–1F and short-body variants, solder-wire and PCB layouts.
View specification

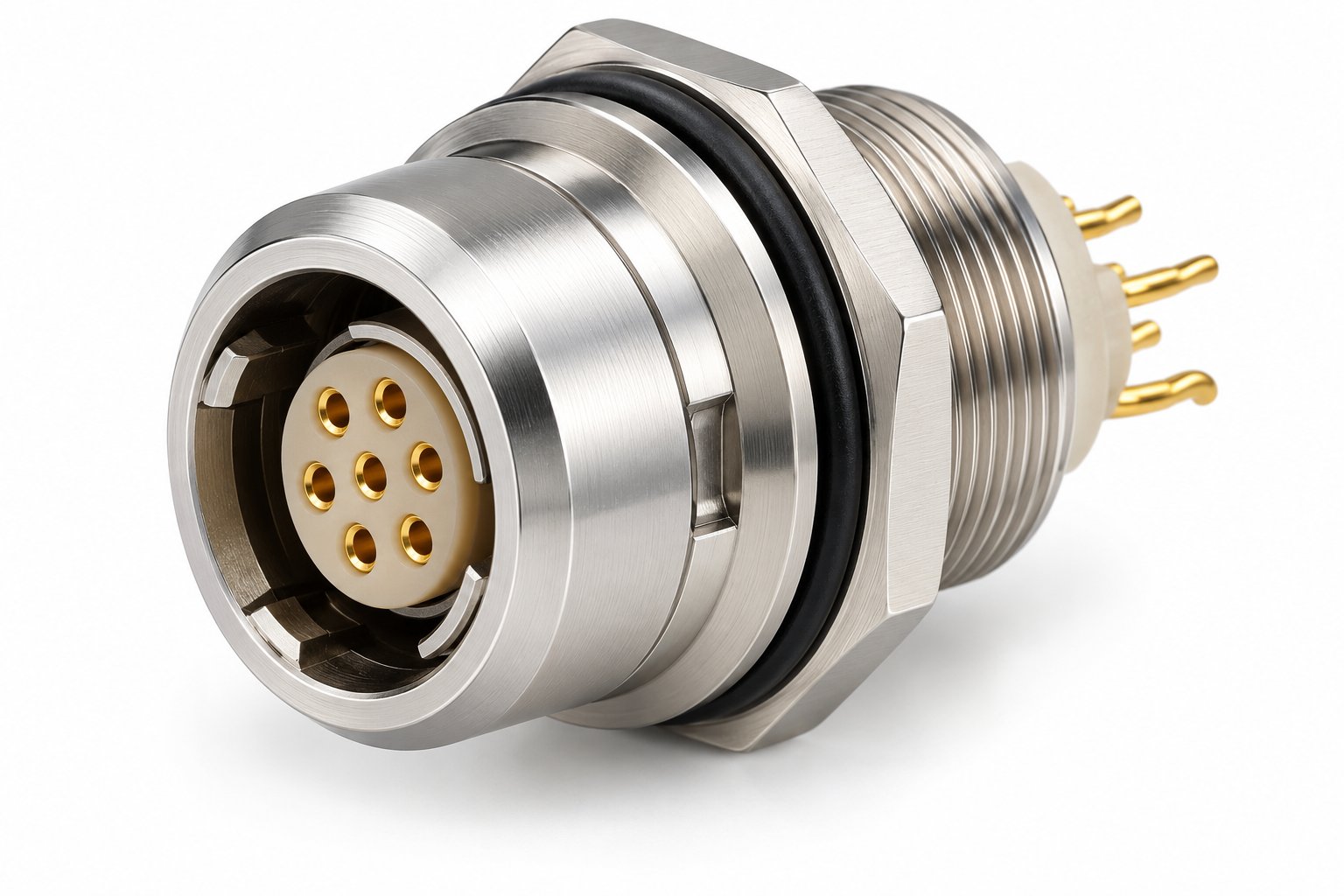

F Series ZGG Fixed Socket
IP68 internally threaded fixed socket of the F Series, 2–27 pins, solder-wire and PCB layouts, 0F–3F shell sizes.
View specification

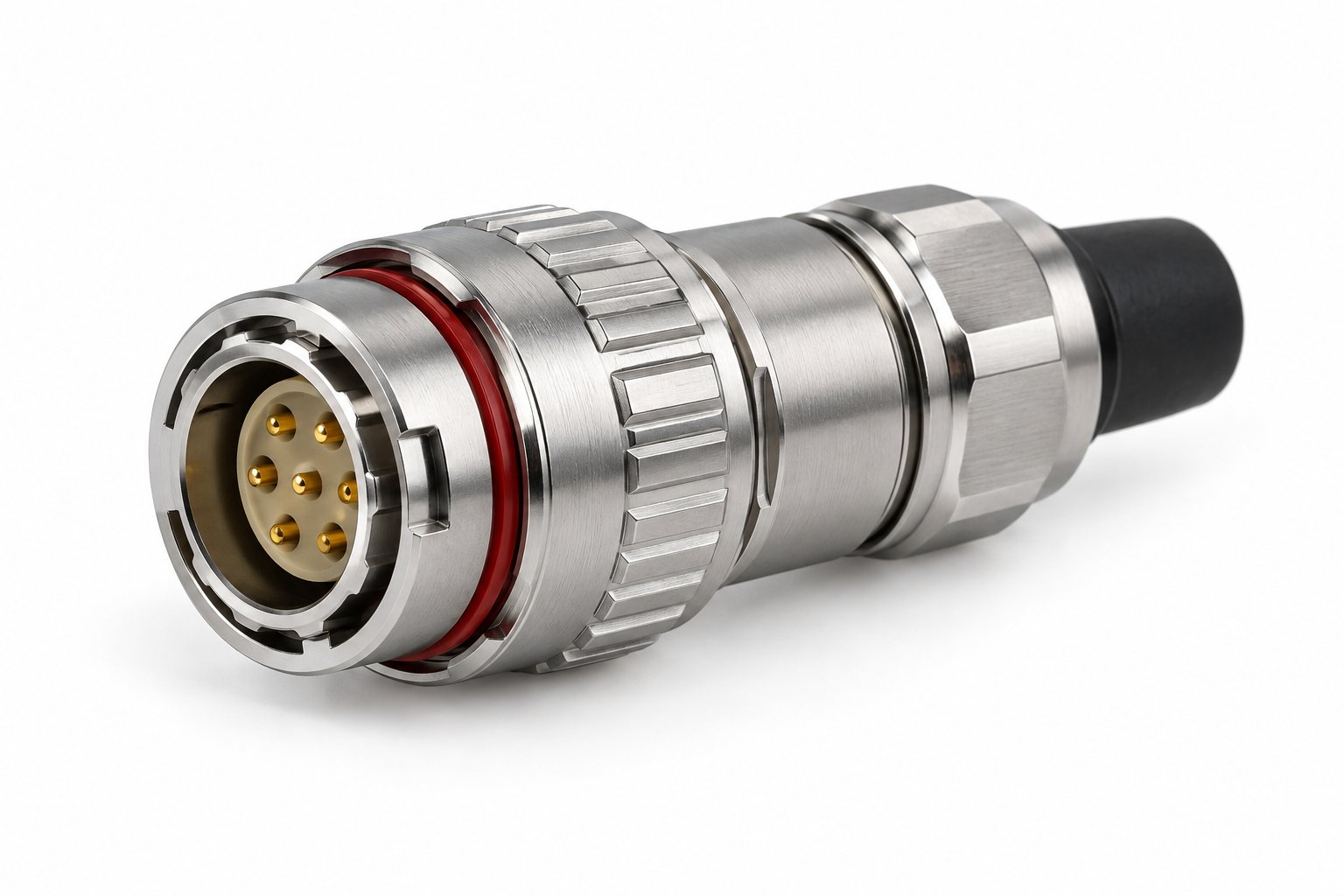

F Series TLG Short Straight Plug
IP68 short-body straight plug of the F Series, 2–27 pins, over 5,000 mating cycles, arc guide groove for fast alignment.
View specification

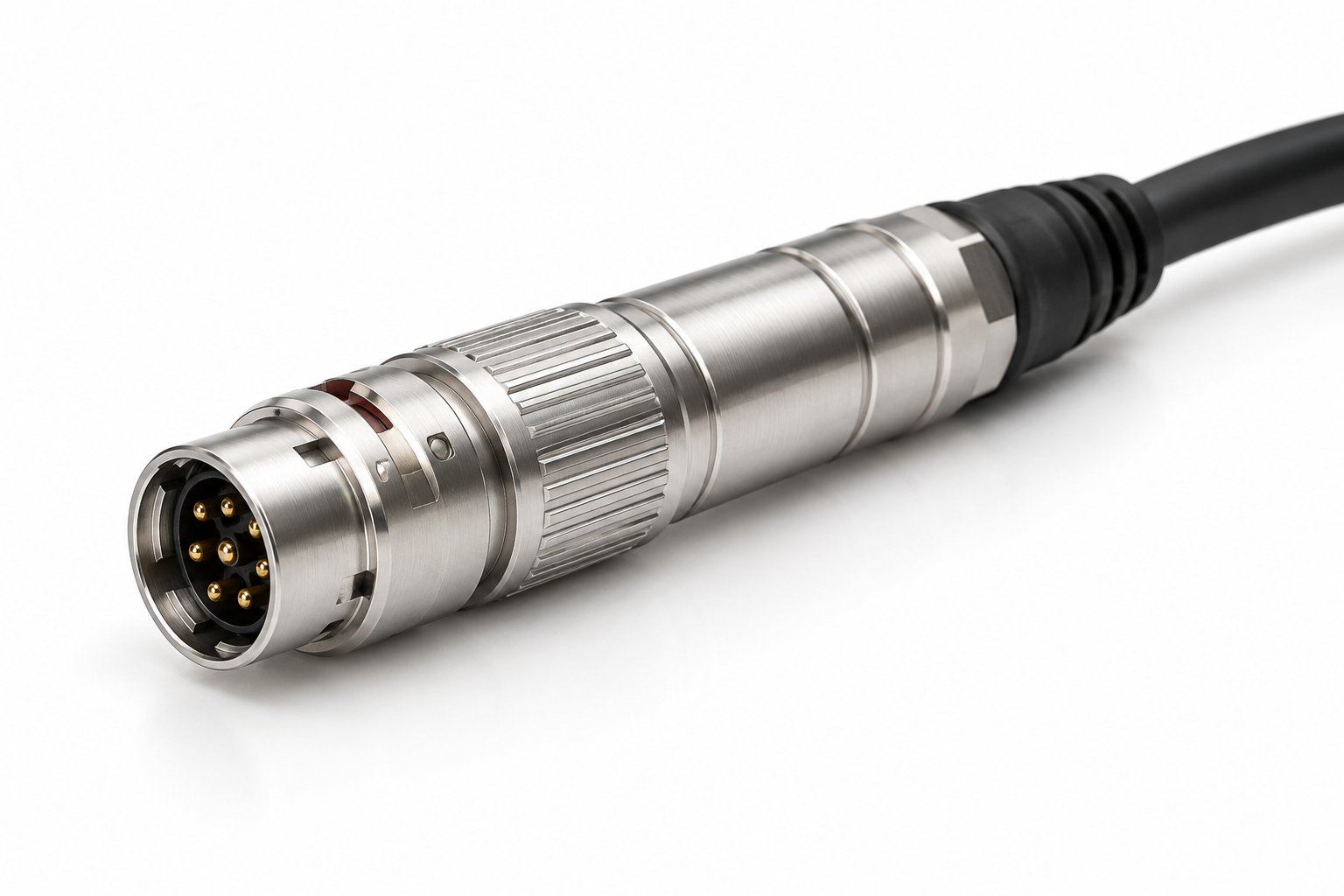

F Series TGG High-Sealing Long Straight Plug
IP68 long straight push-pull plug of the F Series with ring guiding groove, 2–27 pins and over 5,000 mating cycles.
View specification

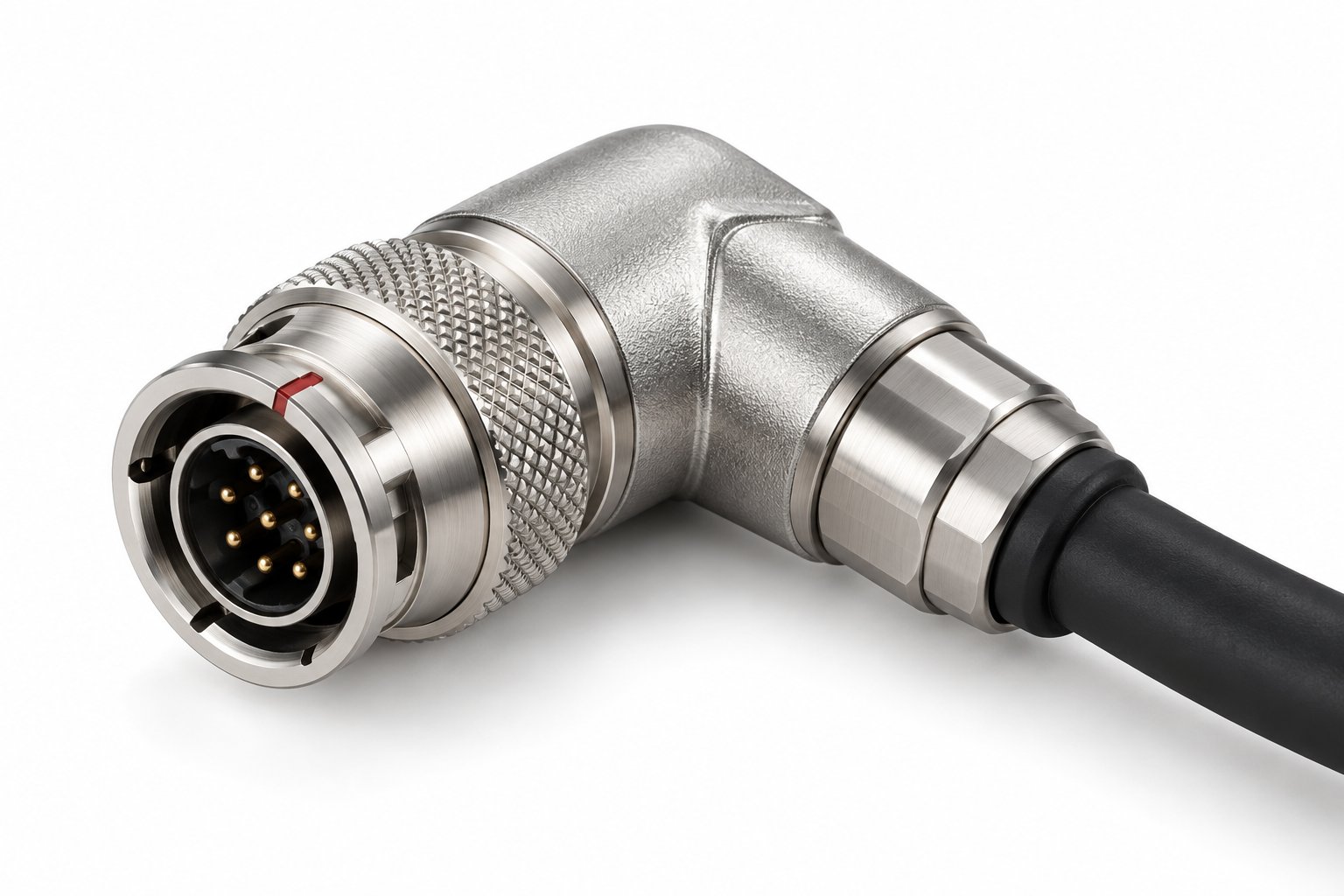

F Series THG High-Sealing 90° Elbow Plug
IP68 90° elbow push-pull plug of the F Series for installations with limited rear space behind the panel.
View specificationF Series Knowledge
Technical Knowledge from the Product Catalogue
The F Series seals push-pull connections to IP68: 2 to 27 contacts, long and short straight plugs, elbow plugs and a full socket family with O-ring sealing at the face and the panel thread.
Key Features
- Contact count from 2 to 27 pins
- Long straight, short straight and elbow cable exits
- High-density insert layout saves panel space
- Push-pull self-locking: quick mating, secure latching
- Full-metal one-piece shielding for excellent EMI resistance
- Solder and PCB termination supported
- Arc-shaped metal guide groove ensures precise alignment
- Multiple guide grooves prevent mismating of same-size connectors
Technical Specifications
- Protection
- IP68 (mated)
- Mating cycles
- > 5,000
- Vibration
- 10–2000 Hz, 15 G
- Shock
- 100 G, 6 ms
- Salt spray
- > 144 h
- Working temperature
- -55 °C to +250 °C
How the Product Code Works
F Series codes combine the connector type (TG long plug, TL short plug, ZG inner fixed socket, ZL short fixed socket, ZE outer fixed socket, DH floating socket), a positioning-pin letter, the shell size — 0F=102F, 1F=103F, 1.5F=1031F, 2F=104F, 3F=105F — and the insert code whose last two digits give the contact count.
Coding Examples
TGG.1F.306.CLAD62Long straight plug, G positioning, 1F shell, 6 contacts, chrome-plated brass shell, PPS insert, solder male contacts
DHG.1F.306.CLLD62ZFloating socket, 6 contacts, solder female contacts, protective boot tail
ZGG.1F.306.CLLInner-thread fixed socket, solder female contacts
