W Series Underwater High-Pressure Connectors
Underwater high-pressure connectors with IP68 sealing, threaded O-ring locking and 2–32 pins.
Product
W Series ZGG 90° Elbow Fixed Socket
IP68 underwater high-pressure 90° fixed socket of the W Series, 2–32 pins, thread and O-ring sealing, 0W–4W shells.
View specification
W Series TGG Underwater High-Pressure Straight Plug
Underwater high-pressure straight plug with threaded O-ring sealing, IP68, 2–32 pins and high shielding performance.
View specification

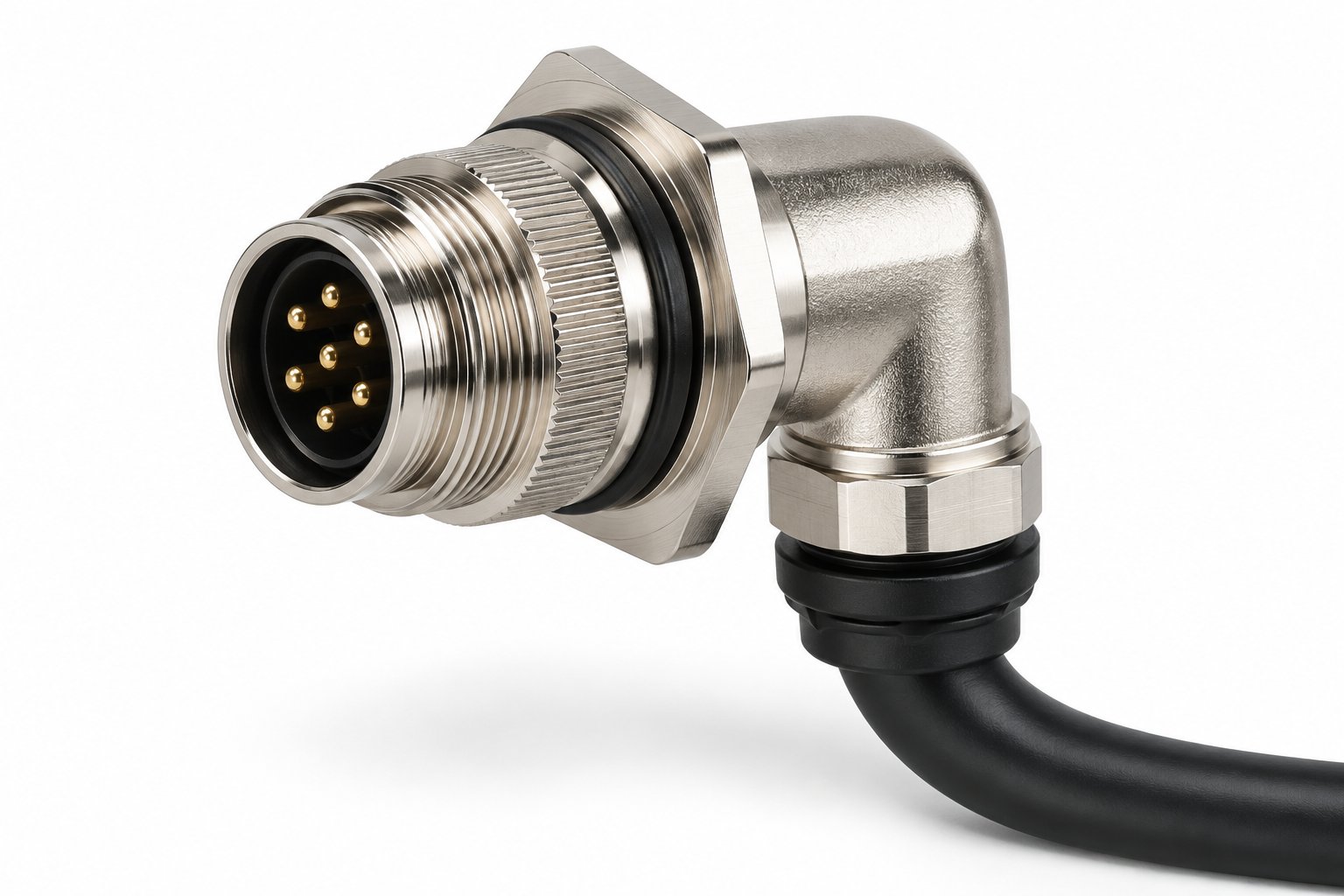

W Series ZGG Underwater High-Pressure Fixed Socket
Underwater high-pressure fixed socket in 90° elbow and straight arrangements, IP68 with O-ring sealing.
View specificationW Series Knowledge
Technical Knowledge from the Product Catalogue
The W Series is built for submersible use: IP68 underwater sealing through a threaded connection with an O-ring seated in a triangular groove, 2 to 32 contacts, and high shielding for long cable runs.
Key Features
- Contact count from 2 to 32 pins
- Straight plug cable exit
- High-density insert layout saves panel space
- Threaded locking sealed by an O-ring seated in a triangular groove
- Full-metal one-piece shielding for excellent EMI resistance
- Positioning-pin anti-mismatch structure, G-type standard keying
- Multiple keying options prevent mismating of same-size connectors
Technical Specifications
- Protection
- IP68 (mated)
- Mating cycles
- > 1,000
- Vibration
- 10–2000 Hz, 15 G
- Salt spray
- > 144 h
- Working temperature
- -20 °C to +200 °C
- Shielding
- > 95 dB @ 10 MHz; > 80 dB @ 1 GHz
How the Product Code Works
W Series codes combine the connector type (TGG straight plug, ZGG fixed socket), a positioning-pin letter, the shell size 0W to 4W, and the insert code whose last two digits give the contact count.
Coding Examples
TGG.1W.306.CLAD62ZStraight plug, G positioning, 1W shell, 6 contacts, chrome-plated brass shell, PPS insert, solder male contacts, boot tail
ZGG.1W.306.CLLFixed socket, 6 contacts, solder female contacts
