Single-Core Elbow Plug with Half-Moon Keying

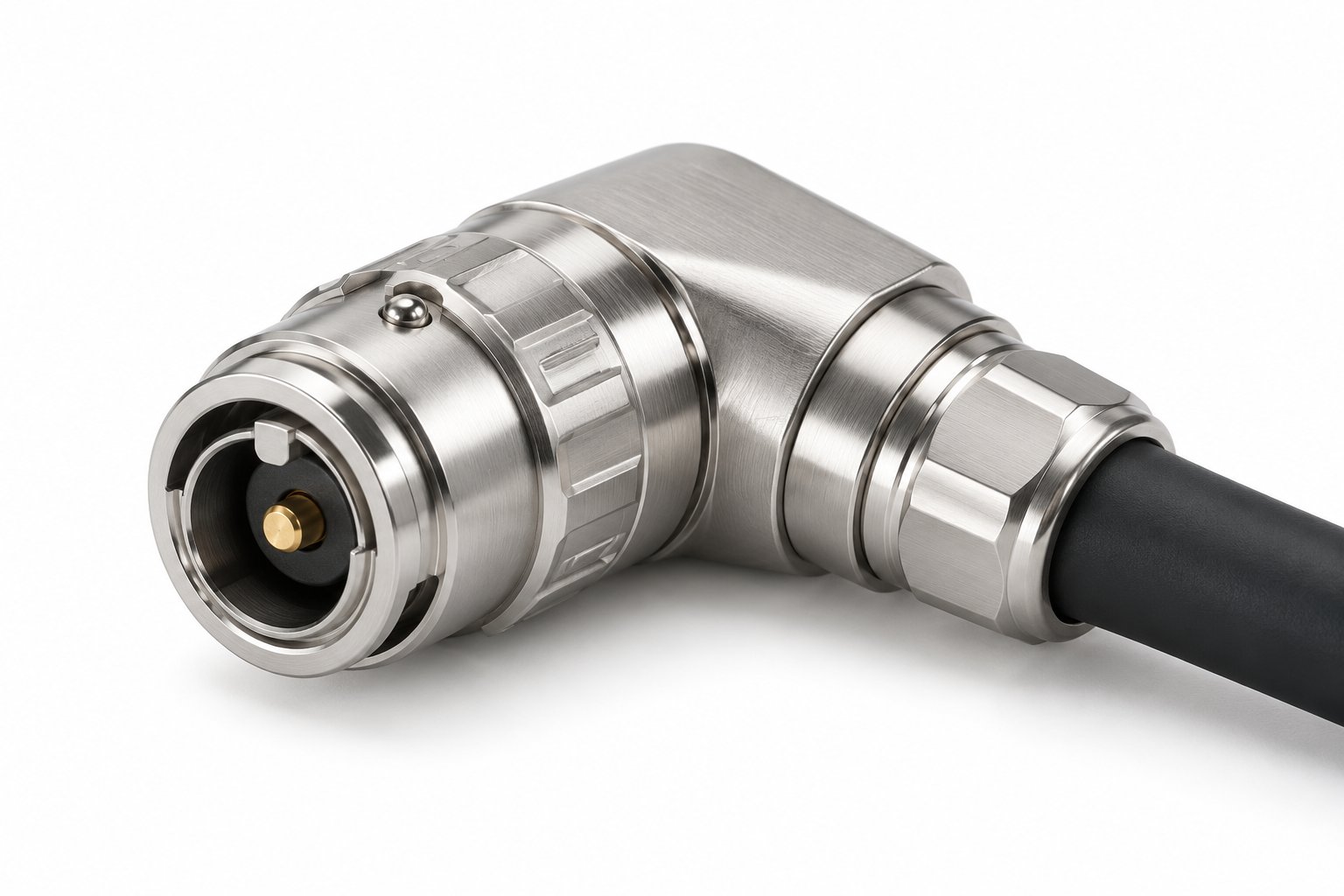

The S Series TLA elbow plug carries a single coaxial or power contact and turns the cable exit through 90°. The half-moon keying on the single contact prevents wrong polarity, and the push-pull latch matches the S Series single-core sockets. Sizes run from 00S to 2S, with nut-tail and sleeve-tail options.
Key features
- Single-contact layout with half-moon polarity keying
- 90° cable exit for tight routing
- 00S / 0S / 1S / 2S shell sizes
- Brass chrome-plated shell, PPS insulator, brass gold-plated contacts
- > 5,000 mating cycles, IP50 mated
Specifications
| Item | Value |
|---|---|
| Shell sizes | 00S / 0S / 1S / 2S |
| Contacts | 1 (single core) |
| Protection | IP50 (mated) |
| Mating cycles | > 5,000 |
| Temperature | -55 °C to +230 °C |
| Termination | Solder |
Typical applications
Used for single-channel signal and coaxial runs on compact instruments, RF test adapters and sensor leads where the cable must leave sideways.
Request drawings and samples
Tell us the shell size and whether the contact is coaxial or power, and we will confirm the TLA single-core code and drawing.
